Data sheet
Spring pin DIN 1481/ISO 8752, 3x26, Steel blank (black)
{{ $t('shop.all.artikelnummer') }}:
1481-3X26

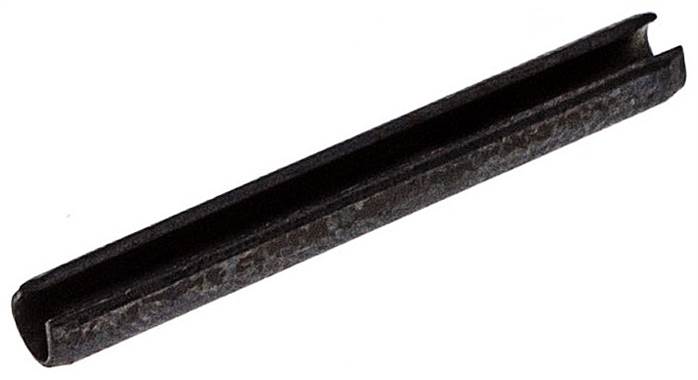

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Steel blank (black) |
| Nominal diameter [mm] | 3 |
| L [mm] | 26 |
| Outer diameter D (before installation) [mm] | 3,3 |
| Inner diameter D1 (before installation) [mm] | 2,1 |
| S [mm] | 0,6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 0,9 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571029258 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: Spannhülse DIN 1481 / ISO 8752
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number 1481-3X26.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
