Data sheet
0821300774 (CONTROL BLOCK NL1) AVENTICS - Befüllventil, pneumatisch betätigt, Serie NL1-SSV
{{ $t('shop.all.artikelnummer') }}:
OT-BRR001733

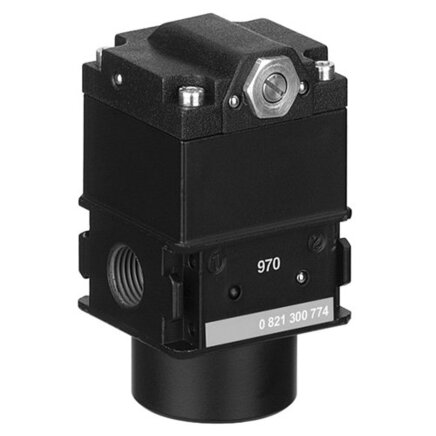

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Nenndurchfluss Qn | 2200 l/min |
| Umgebungstemperatur max. | 60 °C |
| Umgebungstemperatur min. | -10 °C |
| Betriebsdruck max. | 16 bar |
| Betriebsdruck min. | 0 bar |
| Anschluss Ausgang | G 1/4 |
| Anschluss Eingang | G 1/4 |
| SAP-Kurztext | CONTROL BLOCK NL1 |
Further information:
| {{ $t('shop.all.gewicht') }} | 440 g / pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Aventics |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number OT-BRR001733.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
