Data sheet
Pre-welding flared discs DN20-PN10, 26,9x2,5mm, 1.4571
{{ $t('shop.all.artikelnummer') }}:
VB 20-2,5 ES

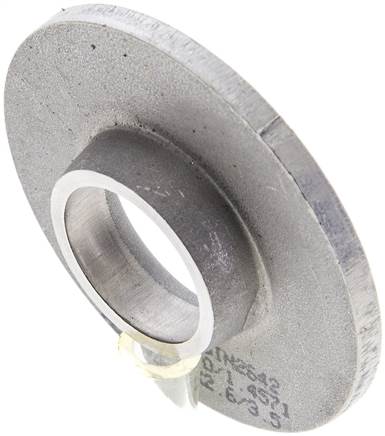

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571 |
| DN [mm] | 20 |
| D [mm] | 26,9 |
| A [mm] | 58 |
| S [mm] | 2,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 85 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571718398 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Pre-welding flanged disc DIN 2642 for loose flanges
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VB 20-2,5 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
