Data sheet

Bellows suction pad, 2,5-way, Ø 30x13mm, NBR (55A), black
{{ $t('shop.all.artikelnummer') }}:
VS 30 B2 NBR

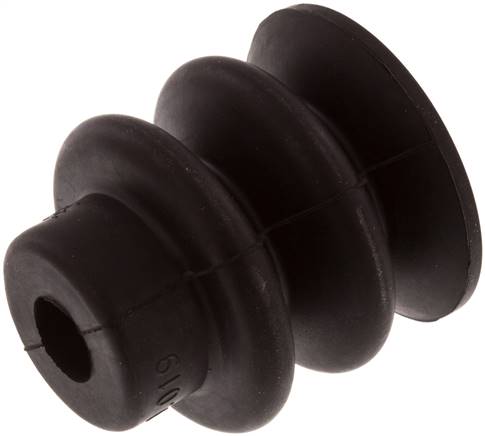

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
CR material:
Description: Chloroprene; temperature range: -40°C up to max. +110°C; wear resistant: fair; resistance to oil: good; Weather and ozone resistance: good; petrol resistance: not recommended; advantage weather resistant; Recommended for: Universal use
NBR material:
Description: Nitrile rubber; temperature range: -30°C up to max. +90°C; wear resistant: fair; resistance to oil: very good; Weather and ozone resistance: not recommended; petrol resistance: fair; Advantage: oil-resistant, water-resistant up to max. 70°C; recommendation for: Universal use
Material silicone:
Description: Silicone rubber; Temperature range: -40°C up to max. +200°C; wear resistant: not recommended; oil resistance: not recommended; Weather and ozone resistance: very good; petrol resistance: not recommended; advantage Temperature resistant, very flexible; Recommended for: Food, electronics
PUR material:
Description: Polyurethane; Temperature range: -20°C up to max. +80°C; wear resistant: good; oil resistance: very good; Weather and ozone resistance: fair; petrol resistance: good; advantage: long service life; recommended for: harsh operating conditions, automobile
NR material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage flexible, wear-resistant; recommended for: Wood, uneven surfaces
NRE material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage very flexible, wear-resistant; recommended for: Wood, uneven surfaces
SBR material:
Description: Styrene-butadiene rubber; temperature range: -30°C up to max. +80°C; wear resistant: very good; oil resistance: not recommended; Weather and ozone resistance: fair; petrol resistance: fair; Advantage: non-marking, very flexible, very abrasion resistant; recommended for: Wood, uneven surfaces
Scope of delivery:
1 pc Suction cup (bracket must be ordered separately)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material NBR (55A)
D [mm] Ø 30
Stroke [mm] 13
colour black
Connection (female thread) G 1/4"
Holder (female thread) VSH G14 I
Connection (male thread) G 1/4"
Holder (male thread) VSH G14
D1 [mm] 8
D2 [mm] 19
D3 [mm] 12
h [mm] 33
H [mm] 48
Temperature range [°C] -30 to +90
Bracket type G
Further information:
{{ $t('shop.all.gewicht') }} 10 g / pcs
{{ $t('shop.all.gtin') }} 4050571724726
{{ $t('shop.display.artikel.zollwarennummer') }} 84879090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Suction cup with holder
Drawing: Assembly example with bracket
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VS 30 B2 NBR.
