Data sheet
Flat suction cups, Ø 146x9mm, G 1/2", CR (60A), Grey
{{ $t('shop.all.artikelnummer') }}:
VS 150 FK CR

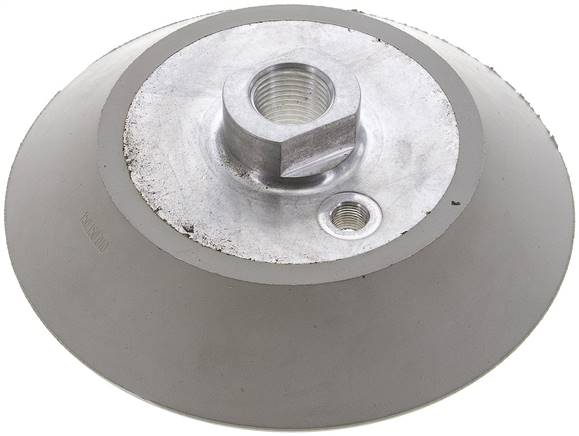

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
CR material:
Description: Chloroprene; temperature range: -40°C up to max. +110°C; wear resistant: fair; resistance to oil: good; Weather and ozone resistance: good; petrol resistance: not recommended; advantage weather resistant; Recommended for: Universal use
NBR material:
Description: Nitrile rubber; temperature range: -30°C up to max. +90°C; wear resistant: fair; resistance to oil: very good; Weather and ozone resistance: not recommended; petrol resistance: fair; Advantage: oil-resistant, water-resistant up to max. 70°C; recommendation for: Universal use
Material silicone:
Description: Silicone rubber; Temperature range: -40°C up to max. +200°C; wear resistant: not recommended; oil resistance: not recommended; Weather and ozone resistance: very good; petrol resistance: not recommended; advantage Temperature resistant, very flexible; Recommended for: Food, electronics
PUR material:
Description: Polyurethane; Temperature range: -20°C up to max. +80°C; wear resistant: good; oil resistance: very good; Weather and ozone resistance: fair; petrol resistance: good; advantage: long service life; recommended for: harsh operating conditions, automobile
NR material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage flexible, wear-resistant; recommended for: Wood, uneven surfaces
NRE material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage very flexible, wear-resistant; recommended for: Wood, uneven surfaces
SBR material:
Description: Styrene-butadiene rubber; temperature range: -30°C up to max. +80°C; wear resistant: very good; oil resistance: not recommended; Weather and ozone resistance: fair; petrol resistance: fair; Advantage: non-marking, very flexible, very abrasion resistant; recommended for: Wood, uneven surfaces
Application:
Universal suction cup, double safety lip prevents separation when leakage of the external lip
Scope of delivery:
1 unit Suction cup with holder
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | CR (60A) |
| D [mm] | Ø 146 |
| Stroke [mm] | 9 |
| colour | Grey |
| Connection (female thread) | G 1/2" |
| B | G 1/8" |
| DN [mm] | 19 |
| D2 [mm] | 34 |
| D3 [mm] | 100 |
| h [mm] | 25,5 |
| H [mm] | 42 |
| h1 [mm] | 12,0 |
| h2 [mm] | 9,0 |
| A [mm] | 30 |
| Temperature range [°C] | -40 to +110 |
Further information:
| {{ $t('shop.all.gewicht') }} | 310 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571724207 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Flat suction with holder
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VS 150 FK CR.
