Podatkovni list

Flat suction cups, Ø 146x9mm, G 1/2", Silikon (60A), siva
{{ $t('shop.all.artikelnummer') }}:
VS 150 FK SI
Vzorčni prikaz
{{ $t('shop.display.artikel.beschreibung_headline') }}
CR material:
Description: Chloroprene; temperature range: -40°C up to max. +110°C; wear resistant: fair; resistance to oil: good; Weather and ozone resistance: good; petrol resistance: not recommended; advantage weather resistant; Recommended for: Universal use
NBR material:
Description: Nitrile rubber; temperature range: -30°C up to max. +90°C; wear resistant: fair; resistance to oil: very good; Weather and ozone resistance: not recommended; petrol resistance: fair; Advantage: oil-resistant, water-resistant up to max. 70°C; recommendation for: Universal use
Material silicone:
Description: Silicone rubber; Temperature range: -40°C up to max. +200°C; wear resistant: not recommended; oil resistance: not recommended; Weather and ozone resistance: very good; petrol resistance: not recommended; advantage Temperature resistant, very flexible; Recommended for: Food, electronics
PUR material:
Description: Polyurethane; Temperature range: -20°C up to max. +80°C; wear resistant: good; oil resistance: very good; Weather and ozone resistance: fair; petrol resistance: good; advantage: long service life; recommended for: harsh operating conditions, automobile
NR material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage flexible, wear-resistant; recommended for: Wood, uneven surfaces
NRE material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage very flexible, wear-resistant; recommended for: Wood, uneven surfaces
SBR material:
Description: Styrene-butadiene rubber; temperature range: -30°C up to max. +80°C; wear resistant: very good; oil resistance: not recommended; Weather and ozone resistance: fair; petrol resistance: fair; Advantage: non-marking, very flexible, very abrasion resistant; recommended for: Wood, uneven surfaces
Application:
Universal suction cup, double safety lip prevents separation when leakage of the external lip
Scope of delivery:
1 unit Suction cup with holder
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Silikon (60A)
D Ø 146
Hod 9
Barva siva
Priključek (notranji navoj) G 1/2"
B G 1/8"
DN 19
D2 34
D3 100
h 25,5
H 42
h1 12,0
h2 9,0
A 30
Temperaturno območje od -40 do +200
Dodatne informacije:
{{ $t('shop.all.gewicht') }} 280 g / Kos
{{ $t('shop.all.gtin') }} 4050571724214
{{ $t('shop.display.artikel.zollwarennummer') }} 84879090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}

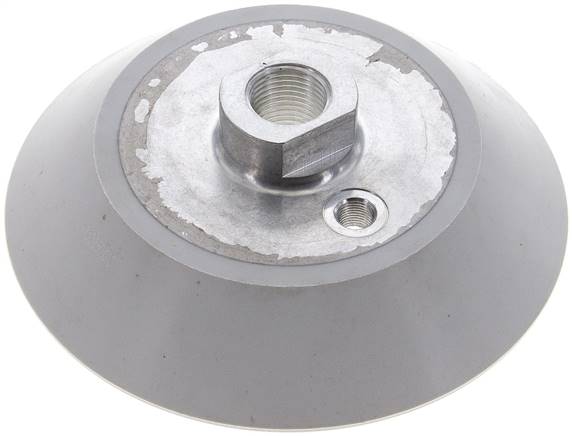

Slika
Risba:
Risba: Flat suction with holder
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.com pod številko artikla VS 150 FK SI.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 18.12.2025
