Data sheet

Flat suction cups (with fine lips), Ø 200x5mm, NRE (35A), white
{{ $t('shop.all.artikelnummer') }}:
VS 200 FF NRE

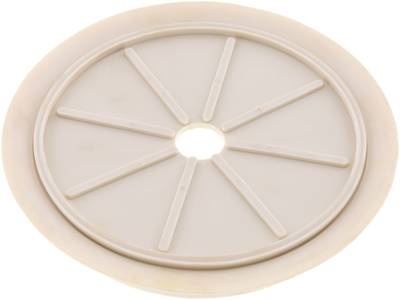

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
CR material:
Description: Chloroprene; temperature range: -40°C up to max. +110°C; wear resistant: fair; resistance to oil: good; Weather and ozone resistance: good; petrol resistance: not recommended; advantage weather resistant; Recommended for: Universal use
NBR material:
Description: Nitrile rubber; temperature range: -30°C up to max. +90°C; wear resistant: fair; resistance to oil: very good; Weather and ozone resistance: not recommended; petrol resistance: fair; Advantage: oil-resistant, water-resistant up to max. 70°C; recommendation for: Universal use
Material silicone:
Description: Silicone rubber; Temperature range: -40°C up to max. +200°C; wear resistant: not recommended; oil resistance: not recommended; Weather and ozone resistance: very good; petrol resistance: not recommended; advantage Temperature resistant, very flexible; Recommended for: Food, electronics
PUR material:
Description: Polyurethane; Temperature range: -20°C up to max. +80°C; wear resistant: good; oil resistance: very good; Weather and ozone resistance: fair; petrol resistance: good; advantage: long service life; recommended for: harsh operating conditions, automobile
NR material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage flexible, wear-resistant; recommended for: Wood, uneven surfaces
NRE material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage very flexible, wear-resistant; recommended for: Wood, uneven surfaces
SBR material:
Description: Styrene-butadiene rubber; temperature range: -30°C up to max. +80°C; wear resistant: very good; oil resistance: not recommended; Weather and ozone resistance: fair; petrol resistance: fair; Advantage: non-marking, very flexible, very abrasion resistant; recommended for: Wood, uneven surfaces
Application:
uneven, structured and highly roughened surfaces, e.g. corrugated plate
Scope of delivery:
1 pc Suction cup (bracket must be ordered separately)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material NRE (35A)
D [mm] Ø 200
Stroke [mm] 5
colour white
Connection (female thread) G 1/2"
Bracket VSH P12 I
D3 [mm] 170
D4 [mm] 148,0
h [mm] 31,0
H (incl. bracket) [mm] 33
h3 [mm] 18,5
h4 [mm] 5,0
Temperature range [°C] -40 to +80
Bracket type P
Further information:
{{ $t('shop.all.gewicht') }} 195 g / pcs
{{ $t('shop.all.gtin') }} 4050571724474
{{ $t('shop.display.artikel.zollwarennummer') }} 84879090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Suction cup with holder
Drawing: suitable bracket
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VS 200 FF NRE.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
