Data sheet

3-way T-ball valve, brass, L-borehole, G 3/8",PN 20
{{ $t('shop.all.artikelnummer') }}:
KH 3/38 SL MS

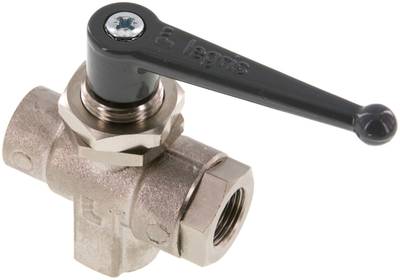

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: polished brass, seal: PA / NBR
Temperature range:
-20°C to +80°C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.98 bar)
Switch panel mounting:
Hole diameter: 20.5 mm (G 1/8": 16.5 mm)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version L-borehole
G G 3/8"
DN [mm] 9
L [mm] 59
PN [bar] -0.98 to 20
L1 [mm] 31
Emax [mm] 5
H [mm] 50
H1 [mm] 27
R [mm] 69
Further information:
{{ $t('shop.all.gewicht') }} 320 g / pcs
{{ $t('shop.all.gtin') }} 4050571418434
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: 3-way ball valve, vertical, with mounting thread, L-bore
Drawing: 3-way ball valve, vertical, with mounting thread, L-bore
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 3/38 SL MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
