Data sheet
Swivel head, M 20x1,5, plastic
{{ $t('shop.all.artikelnummer') }}:
SGS 80/100 KU

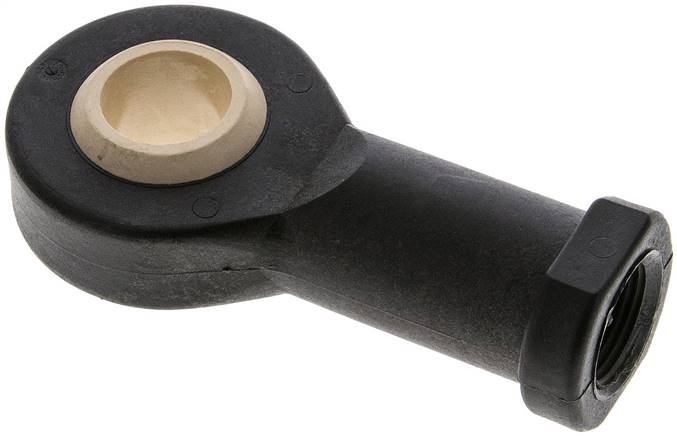

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
High performance polymer, self lubricating
Temperature range:
-40 to +80 °C
Operating range:
wet environments, weak acids and alkalis, water, extreme dirt
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| for piston rod thread A | M 20x1,5 |
| B [mm] | 25 |
| C [mm] | 18,0 |
| D [mm] | 20 |
| D2 [mm] | 50 |
| L [mm] | 33 |
| H [mm] | 77 |
Further information:
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571625344 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84833038 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Swivel head
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number SGS 80/100 KU.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
