Data sheet

3-way ball valve, brass, L-borehole, G 1/4",PN 20
{{ $t('shop.all.artikelnummer') }}:
KH 3/14 LS MS

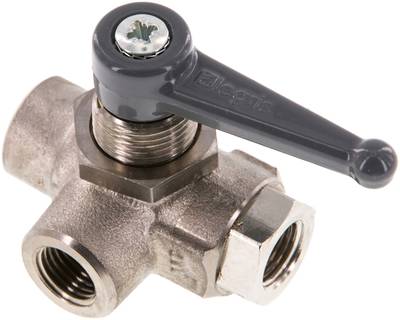

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: polished brass, seal: PA / NBR
Temperature range:
-20 to +80 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.98 bar)
Switch panel mounting:
Hole diameter: 20 mm (G 1/8": 19 mm)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version L-borehole
G G 1/4"
DN [mm] 6
L [mm] 53
PN [bar] -0.98 to 20
L1 [mm] 28
Emax [mm] 8,5
H [mm] 40
R [mm] 48
Further information:
{{ $t('shop.all.gewicht') }} 200 g / pcs
{{ $t('shop.all.gtin') }} 4050571415792
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: 3-way ball valve, with mounting thread
Drawing: 3-way ball valve, with mounting thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 3/14 LS MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
