Data sheet
Measuring hose connector M 16x2 (MT) - M 16x2 (MT)
{{ $t('shop.all.artikelnummer') }}:
ME G 162

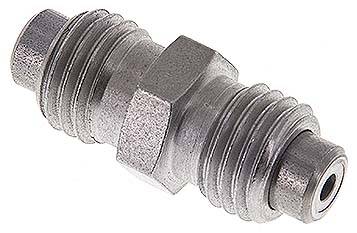

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Version | Hose connector without safety cap |
| Thread M1 | M 16x2 (Male thread) |
| Connection M2 | M 16x2 (Male thread) |
| Operating pressure [bar] | 630 |
| Temperature range [°C] | -20 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 47 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571485894 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number ME G 162.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 15.12.2025
