HD elbow screw-in swivel joint M 14x1,5-10 L (M16x1,5)
{{ $t('shop.all.artikelnummer') }}:
DREH 10 LM

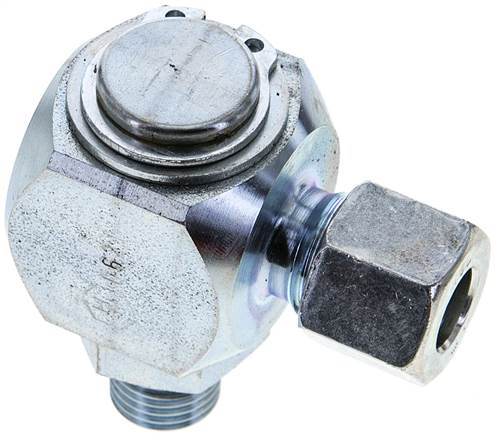

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: NBR (Type 1.4404: FKM)
Temperature range*:
-20°C to max. +100°C (Type 1.4404: -20°C to max. +120°C)
Media:
lubricating media (e.g. hydraulic oil or oiled compressed air)
Field of application:
Between a fixed point and a hose on rotating or oscillating machine components. Hose can vibrate and rotate due to the slide bearing shaft under maximum pressure loading.
Warning:
To balance out alignment inaccuracies, the use of a flexible connection is imperatively recommended.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Model series | light model series |
| Pipe diameter (outer) | 10 L (M16x1,5) |
| Screw-in thread | M 14x1,5 |
| DN [mm] | 6 |
| Umax.* [1/min] | 5,0 |
| Operating pressure* [bar] | 250 |
| Temperature range* [°C] | -20 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 230 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571266776 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Angular swivel joint, metric
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DREH 10 LM.
