Data sheet
Coupling ISO7241-1A, Sleeve Size.3, M 22x1,5(Female thread)
{{ $t('shop.all.artikelnummer') }}:
411022.3 UNIMOG

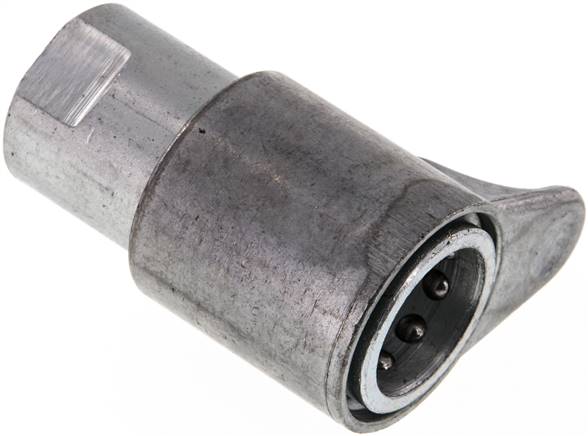

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
zinc plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Advantages:
•streamlining design of the flow rate range,
•push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve.
•push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Sleeve |
| Thread internal | M 22x1,5 |
| A [mm] | 20,5 |
| B [mm] | 38 |
| DN (ISO) [mm] | 12,5 |
| size | 3 |
| PN [bar] | 250 |
Further information:
| {{ $t('shop.all.gewicht') }} | 310 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571197254 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Sizing for hydraulic couplings
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number 411022.3 UNIMOG.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
