Data sheet

Multi stage ejectors to 87% vacuum, G 1/8", to 84 l/min
{{ $t('shop.all.artikelnummer') }}:
VSP 9

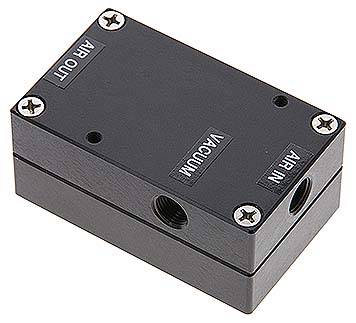

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodised aluminium, nozzles: brass, seal: neoprene
Temperature range:
-20 to +100 °C
Operating pressure:
1 to 7 bar (optimum 4 bar)
Advantages:
•extremely small design, therefore can be fitted directly to consumer item,
•economical,
•maintenance free
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Suction performance [l/min] 84
Thread Supply air G 1/8"
Thread vacuum G 1/8"
Thread exhaust air G 1/8"
Air consumption* [l/min] 48
Silencer FFSD 18
B [mm] 42
H [mm] 31,5
Evacuation time down to 10 % vacuum [s/l] 0,10
Evacuation time down to 20 % vacuum [s/l] 0,25
Evacuation time down to 30 % vacuum [s/l] 0,70
Evacuation time down to 40 % vacuum [s/l] 1,20
Evacuation time down to 50 % vacuum [s/l] 1,60
Evacuation time down to 60 % vacuum [s/l] 2,5
Evacuation time down to 70 % vacuum [s/l] 4,2
Flow at 0% vacuum [l/min] 82
Flow at 10% vacuum [l/min] 43
Flow at 20% vacuum [l/min] 30
Flow at 30% vacuum [l/min] 20
Flow at 40% vacuum [l/min] 11,0
Flow at 60% vacuum [l/min] 6,0
Flow at 80% vacuum [l/min] 1,5
Further information:
{{ $t('shop.all.gewicht') }} 165 g / pcs
{{ $t('shop.all.gtin') }} 4050571727444
{{ $t('shop.display.artikel.zollwarennummer') }} 84141089
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VSP 9.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
