Data sheet

Double nipple, separable R 1" flat sealing,Brass
{{ $t('shop.all.artikelnummer') }}:
DNT 1010 F MS

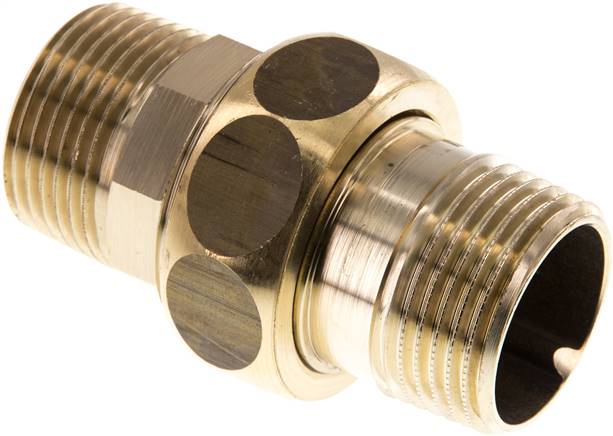

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: Type Brass: Centellen*, type 1.4408: PTFE, zinc-plated malleable cast iron type: Please order separately!
Warning:
Version of the sealing surfaces and union nuts varies depending on the manufacturer. It is not recommended to mix individual parts.
Do not forget:
Please also order seals for the malleable cast iron type!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Brass
Thread R 1"
PN [bar] 16
Temperature range [°C] -200 to +200
Replacement seals DNT 10 DI CE
Further information:
{{ $t('shop.all.gewicht') }} 300 g / pcs
{{ $t('shop.all.gtin') }} 4050571261108
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DNT 1010 F MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
