Data sheet
Stainless steel strainer G 1-1/2", PN 40, Eco-Line
{{ $t('shop.all.artikelnummer') }}:
SF 112 ES E

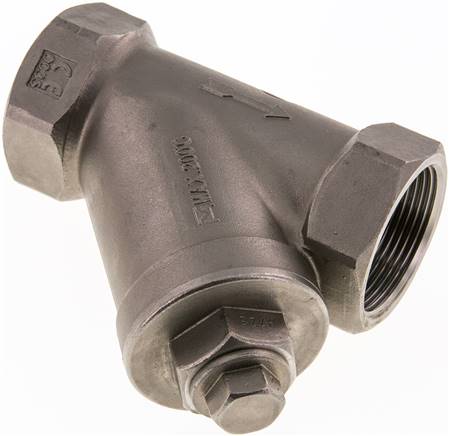

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body 1.4408, seal: PTFE, sieve: 1.4401 (only silicone-free seals and lubricants are used during assembly)
Mesh size:
1,0 mm
Temperature range:
-20 to +200 °C
Media:
Water, oil, compressed air, vacuum (max. -0.99 bar), fuels, solvents, aggressive media
Optional:
0.6 mm mesh size -F, certificate 3.1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 1-1/2" |
| L [mm] | 120 |
| PN [bar] | -0.99 to 40 |
| Mesh width | 1,0 mm |
| H [mm] | 81,5 |
| Spare filter 1.0 mm | SFEH 112 ES |
| Spare filter 0,6 mm | SFEH 112 ES-F |
| D [mm] | 44 |
| T [mm] | 63 |
| Replacement seals | SF 112 ES E REP |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571620967 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84219990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Strainer
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number SF 112 ES E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
