Data sheet
Stainless steel strainer G 1-1/4", PN 40, Eco-Line
{{ $t('shop.all.artikelnummer') }}:
SF 114 ES E

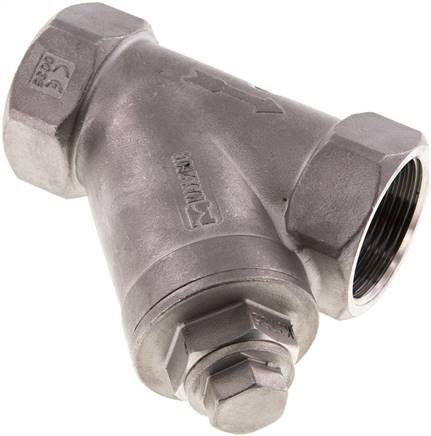

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body 1.4408, seal: PTFE, sieve: 1.4401 (only silicone-free seals and lubricants are used during assembly)
Mesh size:
1,0 mm
Temperature range:
-20 to +200 °C
Media:
Water, oil, compressed air, vacuum (max. -0.99 bar), fuels, solvents, aggressive media
Optional:
0.6 mm mesh size -F, certificate 3.1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 1-1/4" |
| L [mm] | 105 |
| PN [bar] | -0.99 to 40 |
| Mesh width | 1,0 mm |
| H [mm] | 74,0 |
| Spare filter 1.0 mm | SFEH 114 ES |
| Spare filter 0,6 mm | SFEH 114 ES-F |
| D [mm] | 36 |
| T [mm] | 53 |
| Replacement seals | SF 114 ES E REP |
Further information:
| {{ $t('shop.all.gewicht') }} | 800 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571621056 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84219990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: Schmutzfänger
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number SF 114 ES E.
