Data sheet

Brass mini angle ball valve, G 3/8", PN 20, switching panel nut.
{{ $t('shop.all.artikelnummer') }}:
KHWC 38

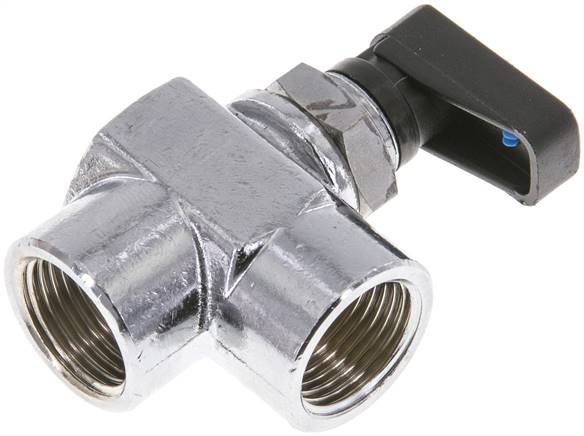

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: chrome-plated brass, ball: chrome-plated brass, seals: PTFE / NBR
Temperature range:
-20 to +80 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.99 bar)
Switch panel mounting:
Hole diameter: 14,5 mm, sheet metal thickness: max. 4,5 mm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G G 3/8"
DN [mm] 7
PN [bar] -0.99 to 20
L [mm] 31,0
H1 [mm] 35,0
H2 [mm] 19,5
R [mm] 19
Further information:
{{ $t('shop.all.gewicht') }} 110 g / pcs
{{ $t('shop.all.gtin') }} 4050571427962
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Angle ball valve with toggle handle on one side, compact
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KHWC 38.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 20.12.2025
