T-groove (3.5mm) cylinder switch, 2-wire reed sensor, red LED
{{ $t('shop.all.artikelnummer') }}:
ZSF 12

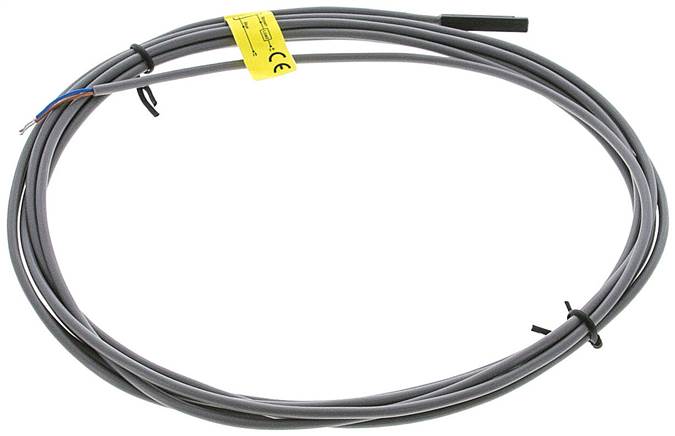

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: plastic, screw: metal
Connecting line:
PVC cable
Protection class:
IP 67
Temperature range:
-10 to +70 °C
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the T-groove of the cylinder and locking it using the threaded rod.
Suitable:
For cylinders / grippers with continuous T groove (3.5 mm)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | 2-wire reed sensor, red LED |
| Operating voltage | 5 - 240 V (AC / DC) |
| Switching | NO contact |
| Max. switching current [mA] | 100 |
| Max. capacity | 10 W / VA |
| Connecting line | 3 m, 2x 0.32 mm² |
Further information:
| {{ $t('shop.all.gewicht') }} | 46 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571620776 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
Figure
Drawing:
Drawing: T-groove
Drawing: Sensor dimensions
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number ZSF 12.
