Data sheet

Ersatzsieb 0,5mm 36x50mm für Schmutzfänger
{{ $t('shop.all.artikelnummer') }}:
SFEI 114 ES

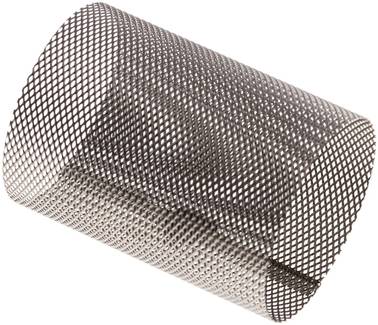

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Brass, Seal: NBR, Sieve: 1.4301
Mesh size:
0.5 mm, (G 2-1/2" to 4": 0.8 mm)
Temperature range:
-20 to +110 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.99 bar)
Optional:
0,2 mm mesh size (only brass type) -F
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Mesh width 0,5 mm
Further information:
{{ $t('shop.all.gewicht') }} 5,6 g / pcs
{{ $t('shop.all.gtin') }} 4050571623944
{{ $t('shop.display.artikel.zollwarennummer') }} 84212100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Zeichnung: Schmutzfänger
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number SFEI 114 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
