Data sheet
Reducing nipple R 3/8"(male thread)-NPT 3/8"(Female thread), Brass
{{ $t('shop.all.artikelnummer') }}:
RN 38R38NPT MS

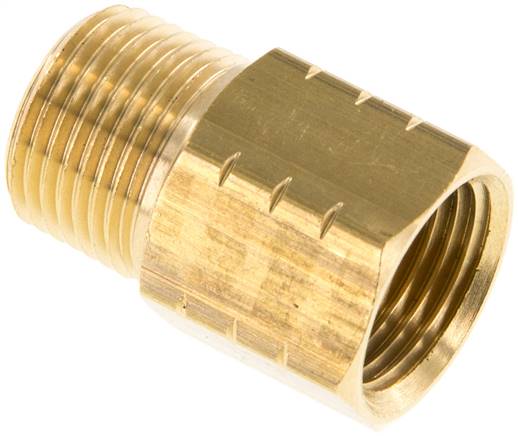

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Thread external | R 3/8" |
| Thread internal | NPT 3/8" |
| PN [bar] | 16 |
| Spanner width [mm] | 19 |
| L [mm] | 17 |
Further information:
| {{ $t('shop.all.gewicht') }} | 32 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571595265 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RN 38R38NPT MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
