Data sheet
Elbow flange screw joint Pump flange LK 35, 15 L (M22x1,5)
{{ $t('shop.all.artikelnummer') }}:
BFW 15L/LK35

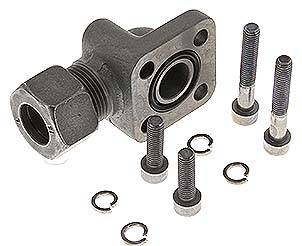

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Galvanised malleable cast iron (with female thread: aluminium), seal: NBR
Temperature range:
-30 to +90 °C
Scope of delivery:
Flange with union nut & cutting ring or with female thread, O-ring, and metric screw set
Operating recommendations:
German pump flanges
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Tube connection | Cutting ring screw connection (light series) |
| Flange connection | Pump flange LK 35 |
| Pipe diameter (outer) | 15 L (M22x1,5) |
| Operating pressure [bar] | 250 |
| Fastening screws | 2 each M 6 x 22 & M 6 x 35 |
Further information:
| {{ $t('shop.all.gewicht') }} | 240 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571223915 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
Figure
Drawing:
Drawing: Elbow flange screw joint, square pump flange with cutting wing screw connection
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number BFW 15L/LK35.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
