Data sheet

Straight push in fitting R 1/4"-12mm, Series stainless steel
{{ $t('shop.all.artikelnummer') }}:
RIX 05 12 13

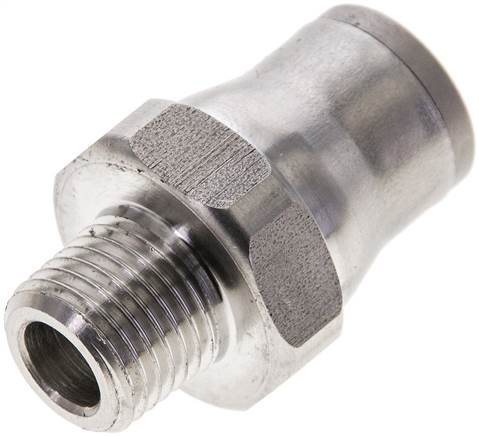

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Model series topline, C and CV
Materials:
Body: nickel-plated brass, seal: NBR (CV model series: FKM), sleeve: nickel-plated brass (Topline model series: plastic)
Temperature range:
-20°C to max. +70°C (Model series CV: max. +150°C)
Operating pressure:
-0.95 to 15 bar
Model series stainless steel
Materials:
Body: stainless steel (316), seal: FKM, sleeve: stainless steel (316)
Temperature range:
-15°C up to max. +110°C
Operating pressure:
-0,95 to 18 bar
Information:
Only use silicone free seals and lubricants during assembly!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Model series Series stainless steel*
R R 1/4"
D [mm] 12
Temperature range [°C] -15 to +110
Operating pressure [bar] -0.95 to 18
Further information:
{{ $t('shop.all.gewicht') }} 35 g / pcs
{{ $t('shop.all.gtin') }} 4050571588526
{{ $t('shop.display.artikel.zollwarennummer') }} 73072980
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RIX 05 12 13.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
