Data sheet
Straight flange screw joint Pump flange LK 35, 16 S (M24x1,5)
{{ $t('shop.all.artikelnummer') }}:
BFG 16S/LK35

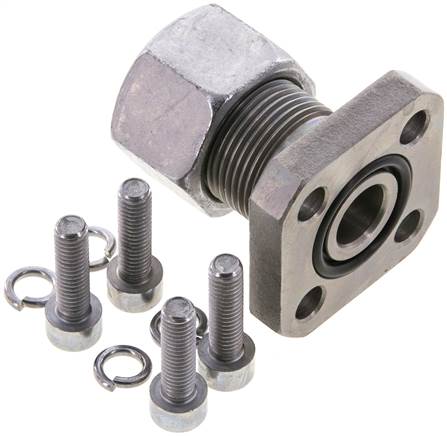

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: zinc plated steel, seal: NBR
Temperature range:
-30 to +90 °C
Scope of delivery:
Flange with union nut & cutting ring or with female thread, O-ring, and metric screw set
Operating recommendations:
German & Italian pump flanges
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Tube connection | Cutting ring screw connection (heavy series) |
| Flange connection | Pump flange LK 35 |
| Pipe diameter (outer) | 16 S (M24x1,5) |
| Operating pressure [bar] | 315 |
| Fastening screws | 4 pcs. M 6 x 22 |
Further information:
| {{ $t('shop.all.gewicht') }} | 220 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571223588 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
Figure
Drawing:
Drawing: Straight flange screw joint, square pump flange
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number BFG 16S/LK35.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
