Data sheet
Reducing nipple UNF 9/16"-18(JIC male thread)-UNF 7/8"-14(JIC female thread)
{{ $t('shop.all.artikelnummer') }}:
RN 9/16-7/8

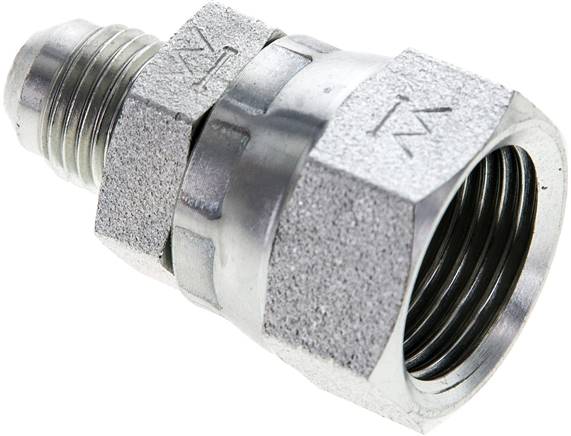

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Thread external | UNF 9/16"-18 |
| Thread internal | UNF 7/8"-14 |
| PN* [bar] | 210 |
Further information:
| {{ $t('shop.all.gewicht') }} | 80 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571595715 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
Figure
Drawing:
Drawing: Straight screw connection with JIC thread (male / female)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RN 9/16-7/8.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
