Podatkovni list
Y push in fitting, 3mm plug / push in nipple, 3mm hose
{{ $t('shop.all.artikelnummer') }}:
IQSMY 30H

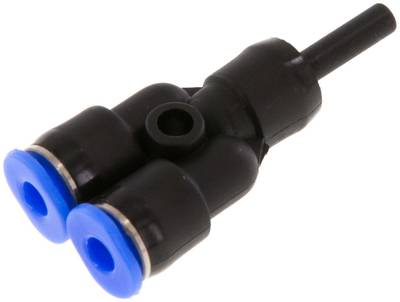

Vzorčni prikaz
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass (M 3: nickel-plated steel) / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated brass (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 do +60 °C
Operating pressure:
-0,95 do 10 bar
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Extremely compact design,
•M 7 thread available,
•M 3, M 5, M 6, M 7 and G 1/8” threads are outfitted with a captive O-ring, which helps prevent the thread from tearing and seals it reliably even after multiple assemblies
•M 7 thread available,
•M 3, M 5, M 6, M 7 and G 1/8” threads are outfitted with a captive O-ring, which helps prevent the thread from tearing and seals it reliably even after multiple assemblies
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| D | 3 |
| D1 | 3 |
Dodatne informacije:
| {{ $t('shop.all.gewicht') }} | 3,9 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571383688 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.com pod številko artikla IQSMY 30H.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 16.12.2025
