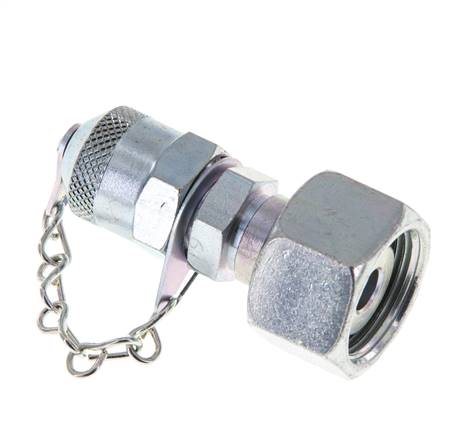

Test coupling M16x2 , 15 L-sealing cone, Jeklo, pocinkano
{{ $t('shop.all.artikelnummer') }}:
ME DKO 15 L
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Jeklo, pocinkano |
| Serija | prazna serija |
| Premer trde cevi (zunaj) | 15 L |
| Navoj prekrivne matice | M 22x1,5 |
| Obratovalni tlak | 315 |
| Temperaturno območje | od -20 do +100 |
| Vgradna višina | 51 |
{{ $t('shop.display.artikel.info') }} MEDKO15L
| {{ $t('shop.all.gewicht') }} | 130 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571485580 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Pogled za tiskanje)
Catalogue page Atlas 9 (Page 676) atlas9_seiten/676.pdf
3D CAD file (volume model) protected/cad/3d/72124/medko15l24422.stp
3D CAD file (volume model) protected/cad/3d/72124/medko15l24422.stp
