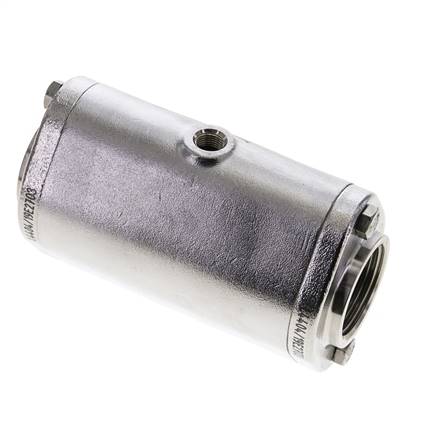

Pinch valve, G 1", Nerjavno jeklo
{{ $t('shop.all.artikelnummer') }}:
QVMC 10 ES
{{ $t('shop.display.artikel.beschreibung_headline') }}
Operating range:
Pneumatic pinch valves are the fitting solution for the shut-off, regulation and dosing of abrasive, corrosive and fibrous products. They are ideally suited for use with these products due to their completely free product flow, whereby a practical blocking and dead space-free fitting results. The pneumatic pinch valves ensure an optimal shut-off, also when used with solids, such as granules, powders, pellets, chipping, sand, cement, gravel, textile fibres, carbon, fine glass fragments and liquids that contain solids.
Advantages:
•Completely free flow,
•No clogging by media,
•Minimum frictional resistance,
•Quick opening and closing,
•Low energy consumption
Materials:
Body: Type stainless steel: 1.4408, aluminium type: powder-coated aluminium, type POM: POM, socket: 1.4408 (type POM: POM), cuff: light-coloured natural rubber in food quality
Operating pressure:
0 do 6 bar
Control pressure:
max. 2 bar higher than the medium's pressure
Temperature range:
-10°C to max. +80°C
Optional:
Natural rubber sleeve, abrasion resistant (-10°C to max. +80°C) -AB, EPDM sleeve (-10°C to max. +120°C) -EP
Pneumatic pinch valves are the fitting solution for the shut-off, regulation and dosing of abrasive, corrosive and fibrous products. They are ideally suited for use with these products due to their completely free product flow, whereby a practical blocking and dead space-free fitting results. The pneumatic pinch valves ensure an optimal shut-off, also when used with solids, such as granules, powders, pellets, chipping, sand, cement, gravel, textile fibres, carbon, fine glass fragments and liquids that contain solids.
Advantages:
•Completely free flow,
•No clogging by media,
•Minimum frictional resistance,
•Quick opening and closing,
•Low energy consumption
Materials:
Body: Type stainless steel: 1.4408, aluminium type: powder-coated aluminium, type POM: POM, socket: 1.4408 (type POM: POM), cuff: light-coloured natural rubber in food quality
Operating pressure:
0 do 6 bar
Control pressure:
max. 2 bar higher than the medium's pressure
Temperature range:
-10°C to max. +80°C
Optional:
Natural rubber sleeve, abrasion resistant (-10°C to max. +80°C) -AB, EPDM sleeve (-10°C to max. +120°C) -EP
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Nerjavno jeklo |
| Izvedba | Potisni ventil, manšeta iz naravne gume (kakovost, primerna za živila) |
| G | G 1" |
| DN | 25 |
| L | 120 |
| A | G 1/8" |
| Nadomestna manšeta iz naravne gume (kakovost, primerna za živila) | QVM 10 LE REP |
| Nadomestna manšeta iz naravne gume (odporna proti obrabi) | QVM 10 AB REP |
| Nadomestna manšeta EPDM | QVM 10 EP REP |
| Temperaturno območje | od -10 do +80 |
{{ $t('shop.display.artikel.info') }} QVMC10ES
| {{ $t('shop.all.gewicht') }} | 1,3 kg / Kos |
| {{ $t('shop.all.gtin') }} | 4050571562557 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818087 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Pogled za tiskanje)
Catalogue page Atlas 9 (Page 529) atlas9_seiten/529.pdf
Dokumentacijo doku/qvm_qvfl.pdf
Dokumentacijo: Position taken about food grade conformity and pressure equipment directive konf_erkl/stellungnahme_lebenmittelkonformitaet_druckgeraeterichtlinie_qvmlerep_qvmces_qvmc_de_en_la.pdf
Dokumentacijo doku/qvm_qvfl.pdf
Dokumentacijo: Position taken about food grade conformity and pressure equipment directive konf_erkl/stellungnahme_lebenmittelkonformitaet_druckgeraeterichtlinie_qvmlerep_qvmces_qvmc_de_en_la.pdf
{{ $t('shop.all.unverbindliche_richtwerte') }}
