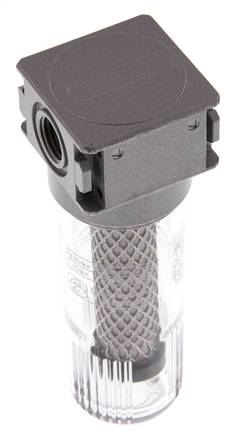

MULTIFIX Filter z aktivnim ogljem G 1/4", Multifix 0

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: die-cast zinc (model series 5: aluminium) or polycarbonate

Temperature range:
-10 do +60 °C

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)

Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.

Note about semi-automatic condensate drain:
As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.

Application:
Activated carbon filters are used for odour filtering of compressed air. The activated carbon absorbs the oil vapour molecules contained in the compressed air. An additional filter cloth prevents the activated carbon particles from being pulled by the airflow. We recommend the upstream connection of a prefilter and microfilter to increase the service life.

Residual oil content:
0.005 mg/m³ (Class 0 according to DIN ISO 8573-1)

Input pressure:
0 - 16 bar, with metal bowl max. 20 bar (model series 0: when a coupling kit is used, max. 12 bar

Optional:
Model series 0 (only type FA 018), 1 and 2: Protective cage -S, model series 4: Metal bowl with inspection tube -M

Izvedba	Filter z aktivnim ogljem
Serija	Multifix 0
Navoj	G 1/4"
optimalni pretok*	380
Izvedba zbiralnika	Plastična posoda
Prostornina posode	16
H	124
H1	111
L	40
Pritrdilni nosilec	W 0
Sklopni paket	KP 0
Nadomestni filter (aktivno oglje)	A 23/80
Vhodni tlak	0 - 16

{{ $t('shop.all.gewicht') }}	260 g / Kos
{{ $t('shop.all.gtin') }}	4050571292492
{{ $t('shop.display.artikel.zollwarennummer') }}	84213925
