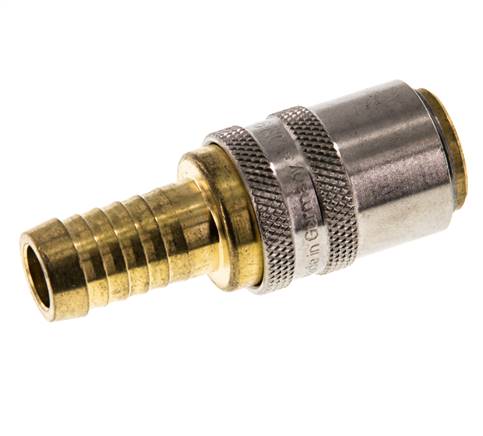

Moulded coupling socket (ravno) 13mm pin, 13 (1/2")mm hose
Št. Izdelka:
KDTS 13 OV-S
Opis artikla
Materials:
Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)
Temperature range:
+5 do +200 °C (Wasser bis +150 °C)
Operating pressure:
0 do 15 bar
Operating range:
For liquid media with temperatures up to +200°C, e.g. for cooling circuits on plastic processing machines
Note:
Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).
Optional:
with unlocking protection (standard by stainless steel couplings) -S
To differentiate the brass couplings easier:
Coupling socket:
Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless
Coupling plug:
Plain brass plug = metric thread, nickel-plated brass plug = imperial thread
Compatible with**:
HASCO (Z8 .../13 ...)
Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)
Temperature range:
+5 do +200 °C (Wasser bis +150 °C)
Operating pressure:
0 do 15 bar
Operating range:
For liquid media with temperatures up to +200°C, e.g. for cooling circuits on plastic processing machines
Note:
Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).
Optional:
with unlocking protection (standard by stainless steel couplings) -S
To differentiate the brass couplings easier:
Coupling socket:
Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless
Coupling plug:
Plain brass plug = metric thread, nickel-plated brass plug = imperial thread
Compatible with**:
HASCO (Z8 .../13 ...)
Lastnosti
| Material | Medenina |
| Oblika | ravno |
| Izvedba | brez ventila |
| Premer mehke cevi (znotraj) | 13 (1/2") |
| Uporabno za vtič z ventilom | Ne |
| Varnostna zaščita | yes |
| Združljivo s HASCO | Z801/13 |
Dodatne informacije o KDTS13OV-S
| Teža | 80 g / Kos |
| GTIN | 4050571403393 |
| Številka carinskega blaga | 84812090 |
| Skladno z RoHS | Da |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 306) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
**Names and designations are partly trademarks of the manufacturers entered.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
