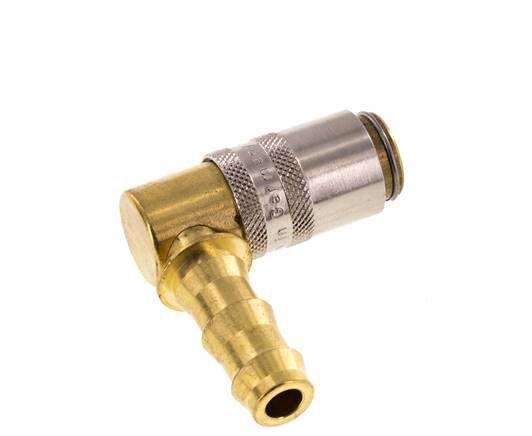

Moulded coupling socket (Kot 90°) 9mm pin, 9,5mm Push-Lok
{{ $t('shop.all.artikelnummer') }}:
KDTSP 1090 OV-S
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)
Temperature range:
-20 do +160 °C
Operating pressure:
0 do 15 bar
Operating range:
For liquid media with temperatures up to +160°C, e.g. for cooling circuits on plastic processing machines (+200°C on request)
Note:
Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).
Optional:
with unlocking protection (standard by stainless steel couplings) -S
To differentiate the brass couplings easier:
Coupling socket:
Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless
Coupling plug:
Plain brass plug = metric thread, nickel-plated brass plug = imperial thread
Compatible with**:
Hasco (Z8 .../9 ...)
Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)
Temperature range:
-20 do +160 °C
Operating pressure:
0 do 15 bar
Operating range:
For liquid media with temperatures up to +160°C, e.g. for cooling circuits on plastic processing machines (+200°C on request)
Note:
Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).
Optional:
with unlocking protection (standard by stainless steel couplings) -S
To differentiate the brass couplings easier:
Coupling socket:
Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless
Coupling plug:
Plain brass plug = metric thread, nickel-plated brass plug = imperial thread
Compatible with**:
Hasco (Z8 .../9 ...)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Medenina |
| Oblika | Kot 90° |
| Izvedba | brez ventila |
| Premer mehke cevi (znotraj) | 9,5 |
| Uporabno za vtič z ventilom | Ne |
| Varnostna zaščita | yes |
| Združljivo s HASCO | Z801PL/9x90 |
{{ $t('shop.display.artikel.info') }} KDTSP1090OV-S
| {{ $t('shop.all.gewicht') }} | 65 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571403652 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Pogled za tiskanje)
Catalogue page Atlas 9 (Page 304) atlas9_seiten/304.pdf
3D CAD file (volume model) protected/cad/3d/72556/kdtsp1090ov-s306567.stp
3D CAD file (volume model) protected/cad/3d/72556/kdtsp1090ov-s306567.stp
