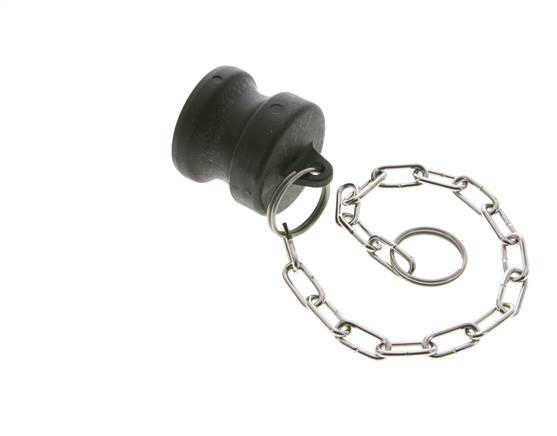

Kamlock valved plug (DP) 1-1/4", Polipropilen
{{ $t('shop.all.artikelnummer') }}:
KLSV 114 PP
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10 do +80 °C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10 do +80 °C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Polipropilen* |
| Velikost | 1-1/4" |
| DN | 32 (1-1/4") |
| Premer vtiča | 45,5 |
| PN | 6 |
{{ $t('shop.display.artikel.info') }} KLSV114PP
| {{ $t('shop.all.gewicht') }} | 75 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571160586 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Pogled za tiskanje)
Catalogue page Atlas 9 (Page 352) atlas9_seiten/352.pdf
Dokumentacijo doku/kld.pdf
3D CAD file (volume model) protected/cad/3d/72582/klsv114pp22865.stp
Dokumentacijo doku/kld.pdf
3D CAD file (volume model) protected/cad/3d/72582/klsv114pp22865.stp
