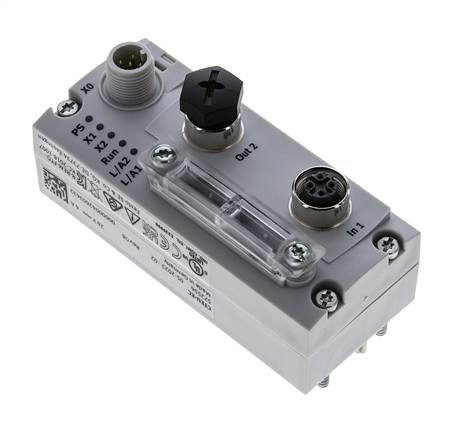

CTEU-EC (572556) bus node
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO033783
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
| Pitch dimension [mm] | 40 |
| Fastening type |
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte |
| Product weight [g] | 90 |
| Report | EtherCAT |
| Fieldbus interface | Ethernet |
| Fieldbus interface, report | EtherCAT |
| Fieldbus interface, connection type | 2x socket |
| Fieldbus interface, connection technology | M12x1 D coded to EN 61076-2-101 |
| Fieldbus interface, number of pins / wires | 4 |
| Fieldbus interface, galvanically separated | yes |
| Fieldbus interface, transfer rate | 100 Mbit/s |
| Internal cycle time | 1 ms per 1 byte user data |
| Max. address volume inputs [Byte] | 16 |
| Max. address volume outputs [Byte] | 16 |
| Voltage supply, function | Electronics and load |
| Voltage supply, connection type | Plug |
| Voltage supply, connection technology | M12x1 A coded to EN 61076-2-101 |
| Voltage supply, number of poles/wires | 5 |
| Diagnosis |
Unterspannung, Kommunikationsfehler, Systemdiagnose |
| Parameterising |
Diagnose aktivieren, Failsafe- und Idle Reaktion |
| Additional functions |
Emergency message, Modular device profile (MDP), - Acyclical data access via "SDO", Diagnose object |
| Operating element | DIL switch |
| LED display product specific |
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2 |
| LED display bus specific |
L/A1: Network active port 1, L/A2: Network active port 2, Run: Communication status |
| Operating voltage range DC [V] | 18 to 30 |
| Nominal operating voltage DC [V] | 24 |
| Intrinsic power input at operating voltage | Type 60 mA |
| Max. power supply [A] | 4 |
| Permission |
RCM mark, c UL us - Listed (OL) |
| KC-mark | KC-EMV |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Bearing temperature [°C] | -20 to 70 |
| Protection category |
IP65, IP67 |
| Information about protection category |
in assembled condition, unused connection closed |
| ambient temperature [°C] | -5 to 50 |
| Housing material | PA |
| Material information |
LABS containing materials included, RoHs compliant |
| Configuration support | XML file |
{{ $t('shop.display.artikel.info') }} OT-FESTO033783
| {{ $t('shop.all.gewicht') }} | 90 g / Kos |
| {{ $t('shop.all.gtin') }} | 4052568218669 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85176200 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Pogled za tiskanje)
Group data sheet: CTEU (english) festo/gruppendatenblaetter/cteu_en.pdf
Dokumentacijo (slovene) festo/datenblaetter/572556_sl.pdf
Dokumentacijo (slovene) festo/datenblaetter/572556_sl.pdf
