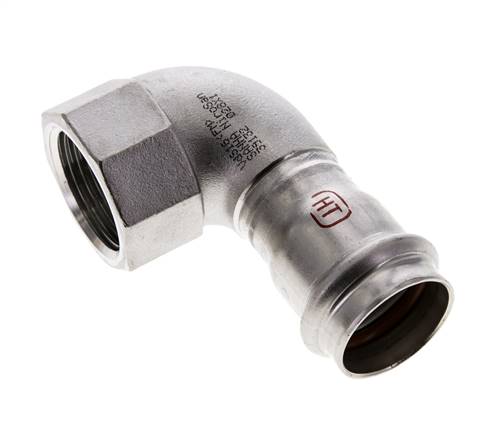

Crimped fitting, angular, 28mm/ Rp 1" female thread, 1.4404
{{ $t('shop.all.artikelnummer') }}:
PWI 1028 ES
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Bodies: Copper/copper alloy, type stainless steel: 1.4404,Seals: FKM (red)
Temperature range*:
-20 do +200 °C (depending on medium), temporarily maks. +280 °C
Operating pressure:
Type copper / copper alloy: 16 bar, Vacuum up to -0.8 bar, Type stainless steel: Ø 15 - 22: 40 bar, Ø 28 - 35: 25 bar, Ø 42 - 54: 16 bar, all diameters: technical gases (for example compressed air, argon, nitrogen, carbon dioxide): 16 bar, Vacuum up to -0.8 bar
Fields of application:
Compressed air, cooling water, industrial water, heating water, heating oil systems, thermic solar systems with glycol or glycol water mixture
Advantages:
•thanks to the FKM seal also suitable for oil bearing compressed air and water/glycol mixtures,
•can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA,
•use with standard EN 1057 copper tubing (copper/copper alloy type),
•Use with our stainless steel system pipe 1.4404 manufactured according to DIN EN 10312 (Stainless steel type)
Warning:
Crimped fittings made of C steel are not suitable for compressed air lines due to the risk of corrosion. We therefore do not offer them.
Bodies: Copper/copper alloy, type stainless steel: 1.4404,Seals: FKM (red)
Temperature range*:
-20 do +200 °C (depending on medium), temporarily maks. +280 °C
Operating pressure:
Type copper / copper alloy: 16 bar, Vacuum up to -0.8 bar, Type stainless steel: Ø 15 - 22: 40 bar, Ø 28 - 35: 25 bar, Ø 42 - 54: 16 bar, all diameters: technical gases (for example compressed air, argon, nitrogen, carbon dioxide): 16 bar, Vacuum up to -0.8 bar
Fields of application:
Compressed air, cooling water, industrial water, heating water, heating oil systems, thermic solar systems with glycol or glycol water mixture
Advantages:
•thanks to the FKM seal also suitable for oil bearing compressed air and water/glycol mixtures,
•can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA,
•use with standard EN 1057 copper tubing (copper/copper alloy type),
•Use with our stainless steel system pipe 1.4404 manufactured according to DIN EN 10312 (Stainless steel type)
Warning:
Crimped fittings made of C steel are not suitable for compressed air lines due to the risk of corrosion. We therefore do not offer them.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4404 |
| Premer trde cevi (zunaj) d | 28 |
| Navoj Rp | Rp 1" |
| a | 72 |
| b | 40 |
| z1 | 43 |
| z2 | 23 |
{{ $t('shop.display.artikel.info') }} PWI1028ES
| {{ $t('shop.all.gewicht') }} | 200 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571560911 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072980 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Pogled za tiskanje)
Catalogue page Atlas 9 (Page 131) atlas9_seiten/131.pdf
3D CAD file (volume model) protected/cad/3d/72429/pwi1028es290798.stp
3D CAD file (volume model) protected/cad/3d/72429/pwi1028es290798.stp
