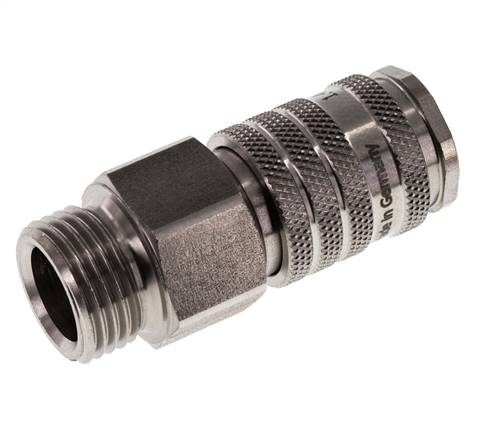

Coupling socket (NW7,2) G 1/2"(male thread), Nerjavno jeklo
Št. Izdelka:
KDG 12 NW7 ES KV *
Opis artikla
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0,95 do 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
Advantages:
•easy uncoupling under pressure,
•robust connection between plug and socket
Optional:
Body made from 1.4404 -ES4AKV, usable for plug shut-off on both sides -BA
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0,95 do 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
Advantages:
•easy uncoupling under pressure,
•robust connection between plug and socket
Optional:
Body made from 1.4404 -ES4AKV, usable for plug shut-off on both sides -BA
Lastnosti
| Material | Nerjavno jeklo |
| Navoj zunanji | G 1/2" |
| Primerno za vtiče – omogočajo obojestransko zaporo | da |
| dejanska nazivna širina | 7,8 |
| Temperaturno območje | od -15 do +200 |
Dodatne informacije o KDG12NW7ESKV
| Teža | 125 g / Kos |
| GTIN | 4050571153069 |
| Številka carinskega blaga | 84812090 |
| Skladno z RoHS | Da |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 286) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
***6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
*clutch can be used with plug without shut-off and with shut-off -BA. For increased flow rates in conjunction with non-shut-off coupling plugs, the actuating pin in the coupling socket can be dismantled.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
