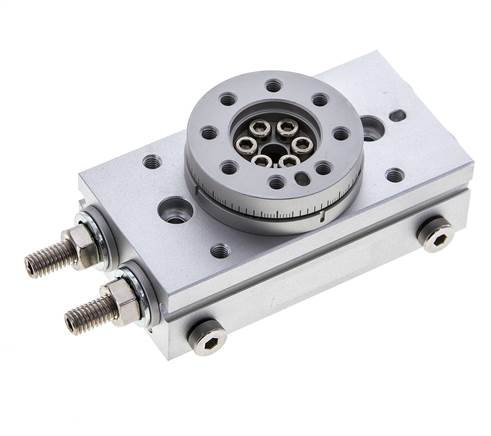

Opis artikla
Materials:
Body and swivel table anodized aluminum, Piston: Stainless steel with magnet insert, Pinion: Steel, Seals: NBR
Temperature range:
0 do +60 °C
Operating pressure:
max. 10 bar (size 7: max. 7 bar), with shock absorbers: max. 6 bar
Swivel angle:
adjustable 0° - 190°
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•Positioning hole on swivel table, body top and body at bottom for repeatable workpiece mounting,
•Internal table diameter and external table diameter as well as bottom hole suitable for precise alignment of the swivel axis,
•Simple fitting from below and above,
•Hollow shaft for media supply to devices mounted on the swivel table,
•Air connection either from the front or laterally (closed with sealing plugs),
•Main dimensions identical to SMC series MSQ / EMSQ
Body and swivel table anodized aluminum, Piston: Stainless steel with magnet insert, Pinion: Steel, Seals: NBR
Temperature range:
0 do +60 °C
Operating pressure:
max. 10 bar (size 7: max. 7 bar), with shock absorbers: max. 6 bar
Swivel angle:
adjustable 0° - 190°
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•Positioning hole on swivel table, body top and body at bottom for repeatable workpiece mounting,
•Internal table diameter and external table diameter as well as bottom hole suitable for precise alignment of the swivel axis,
•Simple fitting from below and above,
•Hollow shaft for media supply to devices mounted on the swivel table,
•Air connection either from the front or laterally (closed with sealing plugs),
•Main dimensions identical to SMC series MSQ / EMSQ
Lastnosti
| Izvedba | s fiksnim prislonom |
| Velikost | 7 |
| Optimalen čas nihanja za 90° | 0,2 - 1,0 |
| Obratovalni tlak | maks. 7 |
| G (priključek stisnjenega zraka) | M 5 |
| Opcijski priključek stisnjenega zraka (zaprto) | M 5 |
| Kompleti za popravila | EMQ 7 REP |
| JC | M 5 |
| JJ | M 4 |
| JU | M 6 (IG) |
| WD | M 4 |
Dodatne informacije o EMQ7A
| Teža | 290 g / Kos |
| GTIN | 4050571931797 |
| Številka carinskega blaga | 84123100 |
| Skladno z RoHS | Da |
| Proizvajalec | EMC |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 875a_875b) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
