Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
2.5 W /station
Protection class:
IP 40
Version:
with LED and protection circuit
Advantages:
•Quick and easy connection,
•Compact design,
•Universally applicable due to modular system,
•LED switching status display and protective circuit,
•Up to 22 valves can be controlled via a multi-pin connection cable,
•Easy valve replacement
Description:
The valve terminals have a modular construction. Please order: 1. Terminal box corresponding to the number of magnets to be controlled. 2. Manifold corresponding to the number of magnets to be controlled. 3. Valves (5/2 or 5/3-way valves) of the relevant model series. 4. For each pulse valve or 5/3-way valve, one connection plate for the second magnet.
Assembly:
1. Slide terminal box onto manifold using dovetail guide. 2. Mount valves (valves with two coils are connected to the second coil via the MSF...-JC) and tighten screw. 3. In case of possible vibrations, please us the additional mounting plates type MCS...-CP, in order to tightly connect the coils with the terminal box.
Function:
Up to 22 stations are controlled via a multi-pin connection cable. Each station is provided with a LED status indicator and a protection circuit. The terminal can always be equipped with 5/2- and 5/3-way valves with a DIN-plug of model series SF2000 where monostable 5/2-way valves are used for single stations, while 5/3-way valves are used for two stations.
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
2.5 W /station
Protection class:
IP 40
Version:
with LED and protection circuit
Advantages:
•Quick and easy connection,
•Compact design,
•Universally applicable due to modular system,
•LED switching status display and protective circuit,
•Up to 22 valves can be controlled via a multi-pin connection cable,
•Easy valve replacement
Description:
The valve terminals have a modular construction. Please order: 1. Terminal box corresponding to the number of magnets to be controlled. 2. Manifold corresponding to the number of magnets to be controlled. 3. Valves (5/2 or 5/3-way valves) of the relevant model series. 4. For each pulse valve or 5/3-way valve, one connection plate for the second magnet.
Assembly:
1. Slide terminal box onto manifold using dovetail guide. 2. Mount valves (valves with two coils are connected to the second coil via the MSF...-JC) and tighten screw. 3. In case of possible vibrations, please us the additional mounting plates type MCS...-CP, in order to tightly connect the coils with the terminal box.
Function:
Up to 22 stations are controlled via a multi-pin connection cable. Each station is provided with a LED status indicator and a protection circuit. The terminal can always be equipped with 5/2- and 5/3-way valves with a DIN-plug of model series SF2000 where monostable 5/2-way valves are used for single stations, while 5/3-way valves are used for two stations.
Lastnosti

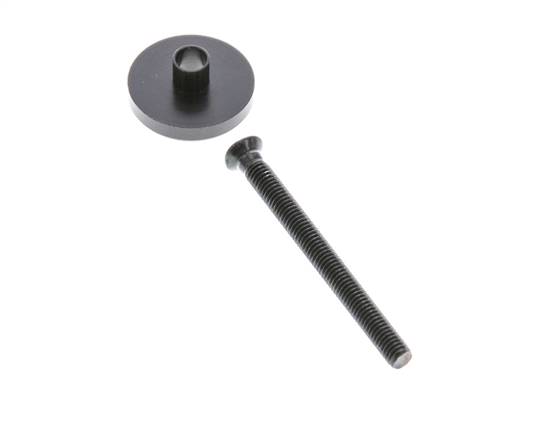

| Opis | Pritrdila plošča za dodatno pritrditev ventilov na priključno omarico |
Dodatne informacije o MCS200-CP
| Teža | 2,3 g / Kos |
| GTIN | 4050571482978 |
| Številka carinskega blaga | 84812090 |
| Proizvajalec | YPC |
Dokumenti
- Catalogue page Atlas 9 (Page 773) (PDF)
- Dokumentacijo (PDF)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
