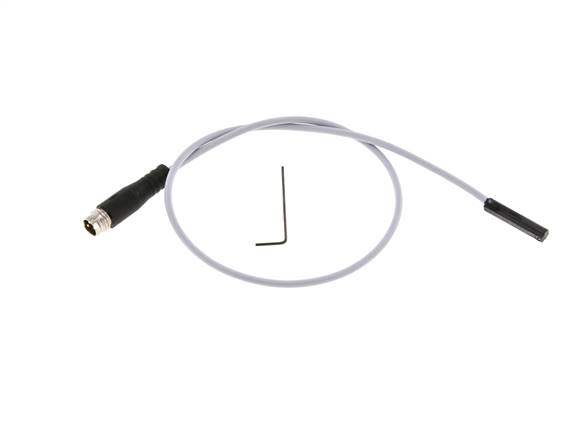

SME-10-SL-LED-24 (173212) proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO001425
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | For round nut |
| Complies to standard | EN 60947-5-2 |
| Permission | RCM mark |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Material information | Copper and PTFE-free |
| Measurement principle | Reed magnetic |
| ambient temperature [°C] | -20 to 70 |
| Control output | Bipolar contact |
| Switching element function | NO contact |
| Reproducibility of the switching value | ± 0,1 mm |
| Switch on time [ms] | <= 0,6 ms |
| Switch off time [ms] | <= 0,05 ms |
| Max. switching frequency [Hz] | 500 |
| Max. output current [mA] | 100 |
| Max. switching capacity DC [W] | 1 |
| Voltage drop [V] | 0 |
| Short circuit resistance | no |
| Overload resistant | Not available |
| Operating voltage range AC [V] | 12 to 27 |
| Operating voltage range DC [V] | 12 to 27 |
| Reverse polarity protection | no |
| Electrical connection |
M8x1, 3 pin, Cable with plug |
| Connection outlet direction | along |
| Cable length [MTR] | 0,3 |
| Cable sleeve material | TPE-U(PUR) |
| Fastening type |
clamped in round slot, Push-in lengthwise into the slot |
| Torque [Nm] | 0,1 |
| Product weight [g] | 5 |
| Housing material |
PPS, TPE-U(PU), High-alloyed stainless steels, brass, nickel-plated |
| Switching status indicator | LED yellow |
| Ambient temperature for moving cable placements [°C] | -5 to 70 |
| Protection category |
IP65, IP67 |
| Insulation voltage [V] | 50 |
| Surge voltage strength [kV] | 0,8 |
| Degree of contamination | 3 |
{{ $t('shop.display.artikel.info') }} OT-FESTO001425
| {{ $t('shop.all.gewicht') }} | 5 g / Pz. |
| {{ $t('shop.all.gtin') }} | 4052568013790 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
