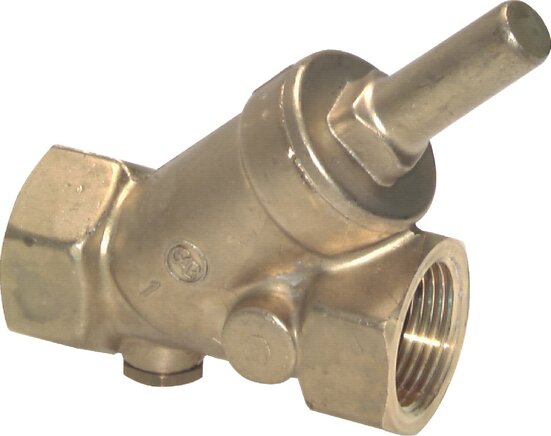

Y-type check valve, Rp 1/2", FKM seal, brass
{{ $t('shop.all.artikelnummer') }}:
RUCK 12 SS/10-V **
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, seat seal: NBR (type DVGW & Rp 2-1/2" - Rp 3": EPDM)
Temperature range:
-10 to +90 °C
Opening pressure:
0,1 to 0,2 bar
Optional:
FKM seal (to 2", -20°C to max. +200°C) -V
Advantages:
•Length according to DIN 3202-M8, with test screw,
•Type DVGW additionally DIN-DVGW certified for drinking water pipes
Body: brass, seat seal: NBR (type DVGW & Rp 2-1/2" - Rp 3": EPDM)
Temperature range:
-10 to +90 °C
Opening pressure:
0,1 to 0,2 bar
Optional:
FKM seal (to 2", -20°C to max. +200°C) -V
Advantages:
•Length according to DIN 3202-M8, with test screw,
•Type DVGW additionally DIN-DVGW certified for drinking water pipes
{{ $t('shop.display.artikel.eigenschaften_headline') }}

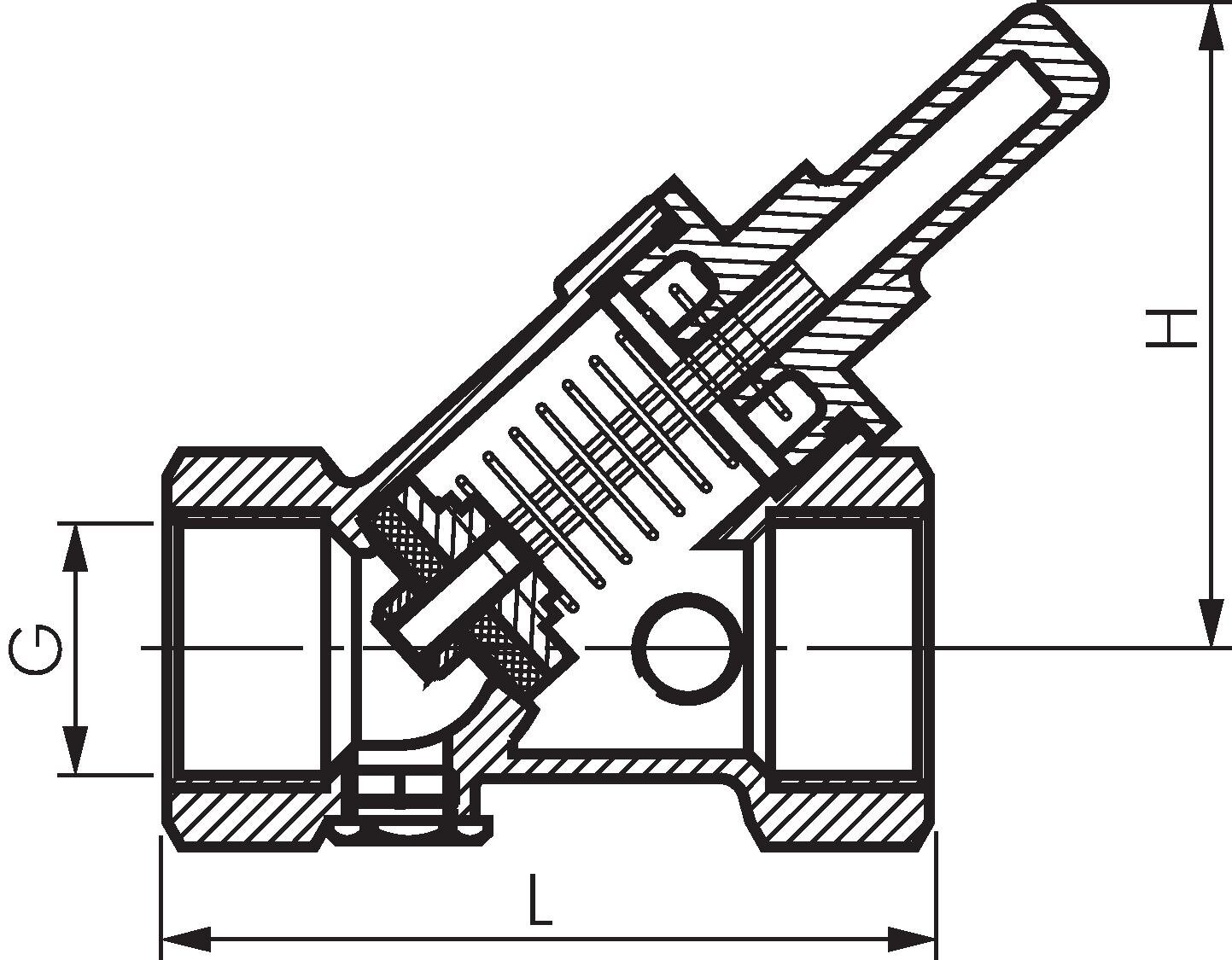

| Version | FKM seal |
| Seals | FKM |
| G | Rp 1/2" |
| L [mm] | 59 |
| H [mm] | 36 |
| PN [bar] | 10 |
{{ $t('shop.display.artikel.info') }} RUCK12SS/10-V
| {{ $t('shop.all.gewicht') }} | 190 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571607166 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84813099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 806) atlas9_seiten/806.pdf
Documentation: Check valves doku/ruck.pdf
3D CAD file (volume model) protected/cad/3d/72262/ruck12ss10-v256026.stp
Documentation: Check valves doku/ruck.pdf
3D CAD file (volume model) protected/cad/3d/72262/ruck12ss10-v256026.stp
