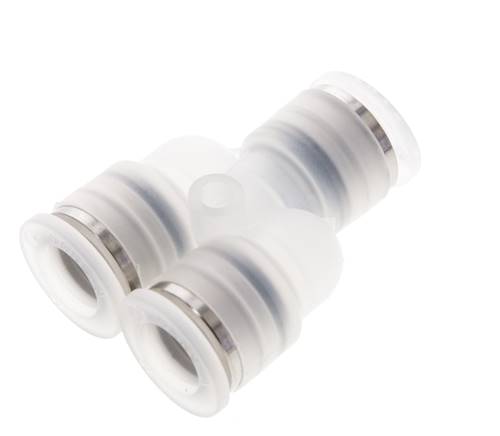

Y-push-in fitting 10mm, IQS-PP
{{ $t('shop.all.artikelnummer') }}:
IQSY 100 PP
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and sleeve: polypropylene, threaded part: polypropylene or stainless steel 1.4301, cartridge: stainless steel 1.4301, seals: EPDM with PTFE coating (cylindrical thread with locular EPDM O-ring), holding claws: stainless steel 1.4310, plastics and seals used have FDA approval
Temperature range:
-20 to +80 °C
Operating pressure:
-0.95 to 9 bar (up to max. +20°C), 30°C: 6 bar, 40°C: 5 bar, 50°C: 4 bar, 60°C: 3.4 bar, 80°C: 3 bar. No pressure reductions for types IQSG ... PP ES, IQSF ... PP ES & IQSS ... PP ES.
Media:
Unoiled compressed air, water (also demineralised), harmless gases and liquids (no mineral oils)
Note:
Due to the mechanical properties of the material polypropylene, the push in fittings should not be exposed to any increased mechanical loads. Return of opened packaging is excluded.
Advantages:
•Easier to use and more economical than push-in fittings made of stainless steel,
•resistant to hydrolysis,
•cleaned, assembled and individually packaged in clean room (US FED 209D, class 10000 - ISO 14664-1 class 7),
•manufactured without oil and silicone,
•threaded pieces made of polypropylene or stainless steel,
•transparent body makes it possible to see the medium inside the connection,
•the plastics and seals used are FDA approved
Body and sleeve: polypropylene, threaded part: polypropylene or stainless steel 1.4301, cartridge: stainless steel 1.4301, seals: EPDM with PTFE coating (cylindrical thread with locular EPDM O-ring), holding claws: stainless steel 1.4310, plastics and seals used have FDA approval
Temperature range:
-20 to +80 °C
Operating pressure:
-0.95 to 9 bar (up to max. +20°C), 30°C: 6 bar, 40°C: 5 bar, 50°C: 4 bar, 60°C: 3.4 bar, 80°C: 3 bar. No pressure reductions for types IQSG ... PP ES, IQSF ... PP ES & IQSS ... PP ES.
Media:
Unoiled compressed air, water (also demineralised), harmless gases and liquids (no mineral oils)
Note:
Due to the mechanical properties of the material polypropylene, the push in fittings should not be exposed to any increased mechanical loads. Return of opened packaging is excluded.
Advantages:
•Easier to use and more economical than push-in fittings made of stainless steel,
•resistant to hydrolysis,
•cleaned, assembled and individually packaged in clean room (US FED 209D, class 10000 - ISO 14664-1 class 7),
•manufactured without oil and silicone,
•threaded pieces made of polypropylene or stainless steel,
•transparent body makes it possible to see the medium inside the connection,
•the plastics and seals used are FDA approved
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Polypropylene |
| D [mm] | 10 |
{{ $t('shop.display.artikel.info') }} IQSY100PP
| {{ $t('shop.all.gewicht') }} | 18 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571833947 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 94) atlas9_seiten/94.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
Documentation: FDA statement konf_erkl/stellungnahme_fda_iqspp-iqsppes_de_en_la.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqsy100pp374138.stp
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
Documentation: FDA statement konf_erkl/stellungnahme_fda_iqspp-iqsppes_de_en_la.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqsy100pp374138.stp
