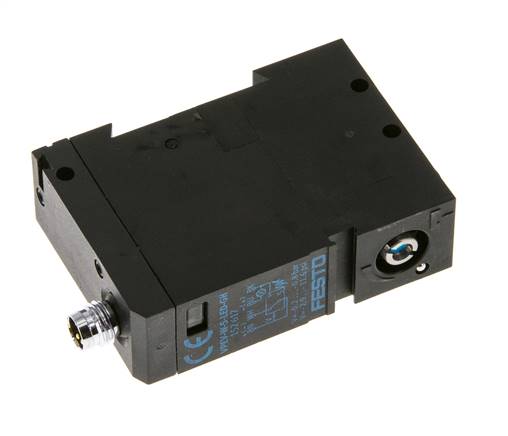

VPEV-W-S-LED-GH (152617) vacuum switch
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO008487
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Permission | RCM mark |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Material information |
LABS containing materials included, RoHs compliant |
| Measured parameter | Relative pressure |
| Measurement process | Pneumatic electric pressure converter |
| Operating pressure [bar] | -1 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Medium temperature [°C] | 0 to 60 |
| ambient temperature [°C] | 0 to 60 |
| Switching element function | changeover contact |
| Max. output current [mA] | 2.500 |
| Electrical connection |
M8x1, 4 pin, Plug |
| Fastening type |
With throughway bores, With Slot rail, Selectively: |
| installation position | arbitrary |
| Pneumatic connection | M5 |
| Product weight [g] | 56 |
| Housing material |
PA, PET, POM |
| Settings range threshold value [bar] | -0.8 to -0.2 |
| Protection category | IP65 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Pressure measurement range [bar] | -0.8 to -0.2 |
| Operating voltage range DC [V] | 10 to 30 |
| Switching status indicator | LED yellow |
| Hysteresis [bar] | 0.08 to 0.2 |
{{ $t('shop.display.artikel.info') }} OT-FESTO008487
| {{ $t('shop.all.gewicht') }} | 56 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568070243 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Group data sheet: PEV-VPEV (english) festo/gruppendatenblaetter/pev-vpev_en.pdf
Documentation festo/datenblaetter/152617_en.pdf
Documentation festo/datenblaetter/152617_en.pdf
