VIP-blocking valve, Spring closing, G 3/4", Brass

VIP 34 FS MS

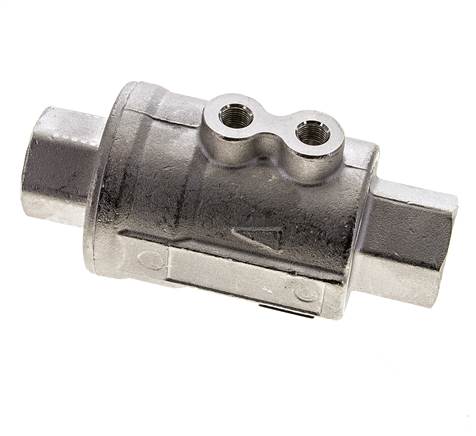

Exemplary representation: Shut-off valve, pneumatically actuated Application examples: VIP shut-off valve closed Application examples: VIP shut-off valve open Schematic symbol: Spring-closed
200,27€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and piston: nickel-plated brass, seals: NBR

Temperature range:
-20°C to max. +80°C (with FKM seal -20°C to max. +150°C)

Operating pressure:
-0.95 to 10 bar

Control connection:
2x G 1/8” (female thread)

Media:
Water, compressed air, vacuum

Optional:
FKM seal (-20°C up to max. +150°C) -V

Advantages:
•flow as for ball valve,
•short switching times,
•compact design,
•any installation position,
•low price
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Brass
Version Spring closing
G G 3/4"
DN [mm] 20
L [mm] 135
H [mm] 70
Temperature range [°C] -20 to +80
Control pressure [bar] 4.2 - 8.5
Seal sets (NBR) VIP 34 REP-NBR
Seal sets (FKM) VIP 34 REP-FKM
Namur adapter VIP NAMUR
VIP34FSMS
{{ $t('shop.all.gewicht') }} 1,4 kg / pcs
{{ $t('shop.all.gtin') }} 4050571720346
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}


{{ $t('shop.all.unverbindliche_richtwerte') }}

Accessories
