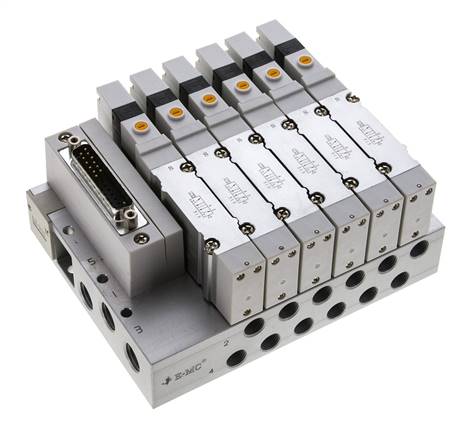

Valve terminal 6x5/2-directional, multi-pin, G 1/8" on base plate (lateral)

Materials:
Body and slider: Aluminium, gaskets: NBR, pilot: Plastic

Operating pressure:
1.5 - 8 bar (5/3-directional: 2 - 8 bar)

Media:
oiled and unoiled filtered compressed air

Switching time:
<15 ms, max. 5 switching cycles / sec. (5/3-directional: max. 3 switching cycles / sec.)

Control voltages:
24 V DC

Voltage tolerance:
± 10 %

Power consumption:
0,8 W / valve solenoid

Protection class:
IP 40

Service life:
min. 40 million switching cycles

Version:
with LED switching status display

Flow per valve station:
approx. 700 l/min

Scope of delivery:
Valve terminal including mounted valves

Optional:
Control via PROFINET (max. 32 valve solenoids, -10 °C to +50 °C) -PN, control via EtherCAT (max. 32 valve solenoids, -10 °C to +60 °C) -EC, control via IO-Link, -10 °C to +50 °C) -IO

Note:
These are standard valve terminals that are available from stock. These can be rearranged in any manner by assembling separately available individual valves if desired. The valves are then arranged in accordance with their function. High item numbers (e.g., SV 5412-M5Y) are located at the electrical connection, low item numbers (e.g., SV 5211-M5) are located away from it. Blanking plates are mounted behind the valves away from the port.
A valve with one or two solenoids can be mounted on a station. The stations are counted in ascending order from the control port.

Advantages:
•Cost-efficient,
•Complete with mounted valves
•Ready for immediate use,
•Extremely compact design,
•Multipole connection can be vertical or horizontal (25-pin D-Sub connector can be swivelled),
•DIN rail mounting or mounting with screws possible. An adapter for DIN rail mounting is enclosed,
•LED switching status display,
•Easy valve replacement from above,
•A valve with one or two solenoid coils can be mounted on one valve position (also retrofitted) as required

Controller	multi-pin
Number of stations [PCE]	6
outlets	G 1/8" on base plate (lateral)
mounted valves	Connection plate valves (5/2-way with spring return)
Temperature range [°C]	-20 to +70
A [mm]	27
B [mm]	20
C [mm]	30
D [mm]	106,7
E [mm]	119,1
F [mm]	127,6
G1	12x G 1/8"
G2	G 1/4"
H [mm]	4,3
K [mm]	139,0
L [mm]	131,0
M [mm]	8
N [mm]	12,5
O [mm]	7,3
P [mm]	16
Q [mm]	15,4
R [mm]	29,8
S [mm]	64,3

{{ $t('shop.all.gewicht') }}	1,7 kg / pcs
{{ $t('shop.all.gtin') }}	4050571916626
