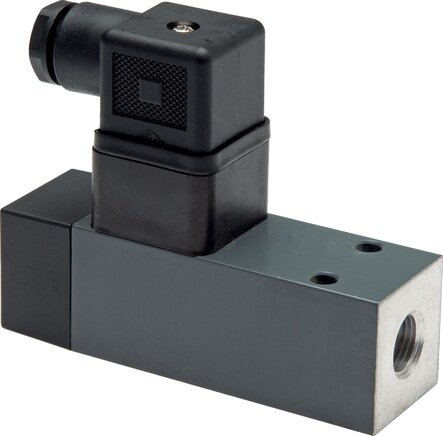

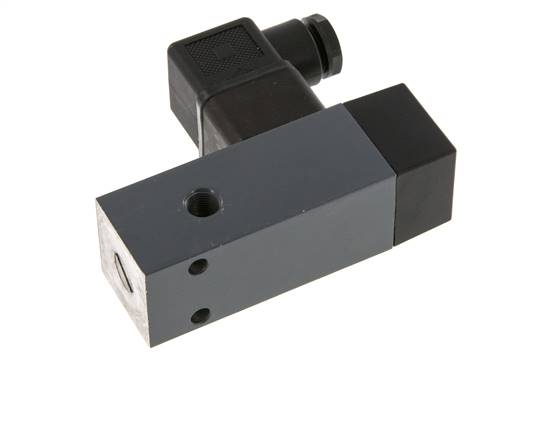

Vacuum switch -0,95 to -0,1 bar, G 1/8"
{{ $t('shop.all.artikelnummer') }}:
VAKUS
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: aluminium, diaphragms**: NBR (vacuum switch: ECO)
Temperature range:
-20 to +100 °C
Switch-back difference (hysteresis)
10 to 30 % of the value that has been set
Protection class:
IP 65
Electrical connection:
Design B1: Screw terminals, design B2: Angle plug DIN 43650 / EN 175301-803 A (size 3, 4-pole)
Switch type:
Changer
Media:
Hydraulic oil, machine oil, fuel oil, air
Body: aluminium, diaphragms**: NBR (vacuum switch: ECO)
Temperature range:
-20 to +100 °C
Switch-back difference (hysteresis)
10 to 30 % of the value that has been set
Protection class:
IP 65
Electrical connection:
Design B1: Screw terminals, design B2: Angle plug DIN 43650 / EN 175301-803 A (size 3, 4-pole)
Switch type:
Changer
Media:
Hydraulic oil, machine oil, fuel oil, air
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Switch type | vacuum switch |
| Setting range [bar] | -0,95 to -0,1 |
| Female thread | G 1/8" |
| Design** | B2 |
| Safe at overpressure up to [bar] | 20 |
| Switch capacity* | 250 V / 3,5 A |
| Electrical connection | Right-angle connector, size 3, 4-pin (DIN 43650 / EN 175301-803 A) (flat pin) |
{{ $t('shop.display.artikel.info') }} VAKUS
| {{ $t('shop.all.gewicht') }} | 290 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571716912 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90268080 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 686) atlas9_seiten/686.pdf
Documentation doku/drs.pdf
3D CAD file (volume model) protected/cad/3d/70723/vakus15871.stp
Documentation doku/drs.pdf
3D CAD file (volume model) protected/cad/3d/70723/vakus15871.stp
