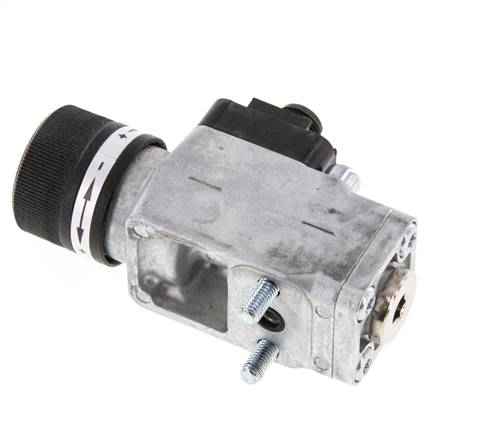

Vacuum switch -0,85 to -0,15 bar,
{{ $t('shop.all.artikelnummer') }}:
DRSZ -1 FL-M12
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc / powder coated aluminium, seals and diaphragms**: NBR / PTFE
Temperature range:
-20 to +80 °C
Switch-back difference (hysteresis)
approx. 10 - 15 % of the set value (vacuum switch: 100 - 250 mbar)
Protection class:
IP 65 (with M 12-plug: IP 67)
Electrical connection:
Angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole) or M 12 plug (A-coded, 4-pole)
Switch type:
Changer
Switching capacity:
24 V DC / 3 A, 250 V AC / 6 A
Media:
Hydraulic oil, machine oil, heating oil, air, water
Optional:
Electrical connection through an M 12 plug (A-coded, 4-pole, IP67) -M12
Advantages:
•reasonably priced pressure switch,
•very comfortable and precise setting of the switch point using the hand wheel
Body: die-cast zinc / powder coated aluminium, seals and diaphragms**: NBR / PTFE
Temperature range:
-20 to +80 °C
Switch-back difference (hysteresis)
approx. 10 - 15 % of the set value (vacuum switch: 100 - 250 mbar)
Protection class:
IP 65 (with M 12-plug: IP 67)
Electrical connection:
Angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole) or M 12 plug (A-coded, 4-pole)
Switch type:
Changer
Switching capacity:
24 V DC / 3 A, 250 V AC / 6 A
Media:
Hydraulic oil, machine oil, heating oil, air, water
Optional:
Electrical connection through an M 12 plug (A-coded, 4-pole, IP67) -M12
Advantages:
•reasonably priced pressure switch,
•very comfortable and precise setting of the switch point using the hand wheel
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | vacuum switch |
| Connection type | flange |
| Setting range [bar] | -0.85 to -0.15 |
| Flange connection | Ø 5.3 x 20 mm hole spacing (Herion flange) |
| Safe at overpressure up to [bar] | 20 |
| Electrical connection | M12 connector, A-coded, 4-pole (DIN EN 61076-2-101) (plug) |
| Protection category | IP 67 |
{{ $t('shop.display.artikel.info') }} DRSZ-1FL-M12
| {{ $t('shop.all.gewicht') }} | 320 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571273583 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90262080 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 686) atlas9_seiten/686.pdf
Documentation doku/drs.pdf
Documentation: NSR-RoHS statement konf_erkl/stellungnahme_niederspannungsrichtlinie-rohs_drsz-1_drssz-1fl_de_en_la.pdf
3D CAD file (volume model) protected/cad/3d/72740/drsz-1fl-m12248635.stp
Documentation doku/drs.pdf
Documentation: NSR-RoHS statement konf_erkl/stellungnahme_niederspannungsrichtlinie-rohs_drsz-1_drssz-1fl_de_en_la.pdf
3D CAD file (volume model) protected/cad/3d/72740/drsz-1fl-m12248635.stp
