Properties
| Pitch dimension [mm] | 10,5 |
| Operating pressure [bar] | -0.9 to 10 |
| Permission |
c CSA us (OL), c UL us - Recognized (OL), RCM Mark |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Material information | RoHs compliant |

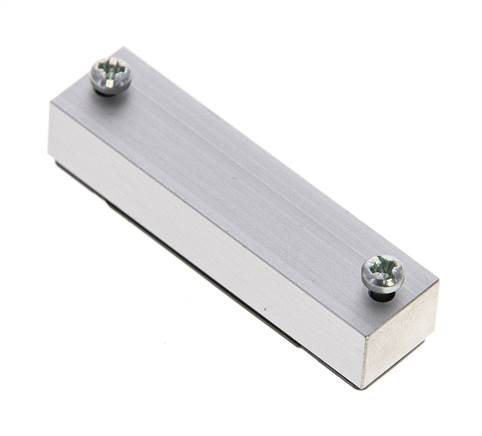

| Cover plate material | Aluminium wrought alloy |
Further information on OT-FESTO036225
| Weight | 11 g / pcs |
| GTIN | 4052568058012 |
| Customs duty number | 84819000 |
| Manufacturer | Festo |
Documents
- Group data sheet: VTUG-G (english) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
