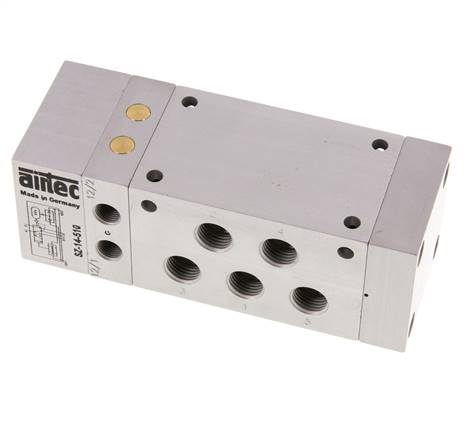

Two signal control block G 1/4", 5/2-way (spring return), Precision
{{ $t('shop.all.artikelnummer') }}:
SZ 14 510
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: plastic and NBR
Media:
oiled and unoiled filtered compressed air
Pressure input:
Connection 1 (type SZ 18 310 B: Air supply via control signals)
Function SZ:
The valve switches when two input signals 12/1 and 12/2 are received within a span of 0.5 sec. On deleting one or both the signals, the piston is reset. The valve does not switch if the input signals are not received within 0.5 sec. To restart, both the signals must be deleted first.
Application SZ:
For machines and devices that must be turned on using both hands (e.g. presses). Cylinders up to Ø 160 can be operated directly using valve SZ 14510 or SZS 14510.
Function SZS:
In addition to the two signal inlets 12/1 and 12/2, this two hand control block also has the signal connection 14. Signal to 14 switches the two hand control block like a normal 5/2-way valve.
Application SZS:
1. For machines and equipment that need to be turned on using both hands, however shortly before stroke-end switch to "detend". Both manual buttons can already be released before the stroke-end. Detend is turned on by the limit switch (signal to 14), and released by a time valve or pressure switch. 2. For machines and equipment that optionally can be turned on with both hands or one hand, or by means of a foot switch.
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: plastic and NBR
Media:
oiled and unoiled filtered compressed air
Pressure input:
Connection 1 (type SZ 18 310 B: Air supply via control signals)
Function SZ:
The valve switches when two input signals 12/1 and 12/2 are received within a span of 0.5 sec. On deleting one or both the signals, the piston is reset. The valve does not switch if the input signals are not received within 0.5 sec. To restart, both the signals must be deleted first.
Application SZ:
For machines and devices that must be turned on using both hands (e.g. presses). Cylinders up to Ø 160 can be operated directly using valve SZ 14510 or SZS 14510.
Function SZS:
In addition to the two signal inlets 12/1 and 12/2, this two hand control block also has the signal connection 14. Signal to 14 switches the two hand control block like a normal 5/2-way valve.
Application SZS:
1. For machines and equipment that need to be turned on using both hands, however shortly before stroke-end switch to "detend". Both manual buttons can already be released before the stroke-end. Detend is turned on by the limit switch (signal to 14), and released by a time valve or pressure switch. 2. For machines and equipment that optionally can be turned on with both hands or one hand, or by means of a foot switch.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Precision |
| function | 5/2-way (spring return) |
| Thread | G 1/4" |
| Thread exhaust air | 2x G 1/4" |
| Thread control connection | 2x G 1/8" |
| Nominal width [mm] | 8 |
| flow [l/min] | 1300 |
| Operating pressure [bar] | 4 - 10 |
| Control pressure [bar] | 4 - 10 |
| Temperature range [°C] | -10 to +70 |
{{ $t('shop.display.artikel.info') }} SZ14510
| {{ $t('shop.all.gewicht') }} | 800 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571682156 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 760) atlas9_seiten/760.pdf
3D CAD file (volume model) protected/cad/3d/70001/sz14510#14333.stp
