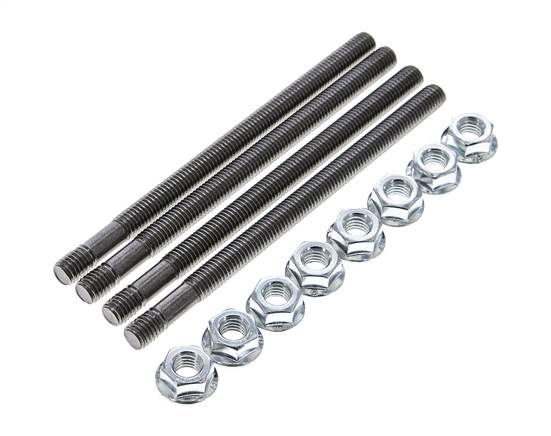

Tie rod set for 1 hand lever element
{{ $t('shop.all.artikelnummer') }}:
CH50 ZUGANKERT1
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
These valves are used in mobile and industrial applications. Compact control blocks with up to 9 consumers such as hydraulic cylinders and hydraulic motors can be assembled using the modular system. In the basic components the zero position of the valve is always designed as a no-pressure cycle from P to T. The input element has a pressure limiting valve with a settings range of 40 - 320 bar. As a standard, the hand lever elements are provided with a spring return to the centre position.
The basic components can be easily converted from spring return to detent or locking of the pressureless circulation with the components marked as retrofit kits.
Materials:
Body: steel and plastic, internal parts: steel, seal: plastic / NBR
Temperature range:
-30 to +90 °C
Media:
Hydraulic oils on the basis of mineral oil (viscosity range: 10 - 300 mm²/s)
Operating pressure:
Inlet pressure: 0 to 320 bar, return pressure max. 35 bar (pressure relief valve adjustable 40 - 320 bar)
Nominal flow:
1 - 2 elements: max. 50 l/min, 3 - 5 elements: max. 45 l/min, 6 - 7 elements: max. 40 l/min, 8 - 9 elements: max. 35 l/min
These valves are used in mobile and industrial applications. Compact control blocks with up to 9 consumers such as hydraulic cylinders and hydraulic motors can be assembled using the modular system. In the basic components the zero position of the valve is always designed as a no-pressure cycle from P to T. The input element has a pressure limiting valve with a settings range of 40 - 320 bar. As a standard, the hand lever elements are provided with a spring return to the centre position.
The basic components can be easily converted from spring return to detent or locking of the pressureless circulation with the components marked as retrofit kits.
Materials:
Body: steel and plastic, internal parts: steel, seal: plastic / NBR
Temperature range:
-30 to +90 °C
Media:
Hydraulic oils on the basis of mineral oil (viscosity range: 10 - 300 mm²/s)
Operating pressure:
Inlet pressure: 0 to 320 bar, return pressure max. 35 bar (pressure relief valve adjustable 40 - 320 bar)
Nominal flow:
1 - 2 elements: max. 50 l/min, 3 - 5 elements: max. 45 l/min, 6 - 7 elements: max. 40 l/min, 8 - 9 elements: max. 35 l/min
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Tie rod set |
| Description / function | for 1 hand lever element |
{{ $t('shop.display.artikel.info') }} CH50ZUGANKERT1
| {{ $t('shop.all.gewicht') }} | 210 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571232511 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84122120 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 818_819) atlas9_seiten/818_819.pdf
3D CAD file (volume model) protected/cad/3d/70135/ch50zugankert1#248689.stp
3D CAD file (volume model) protected/cad/3d/70135/ch50zugankert1#248689.stp
