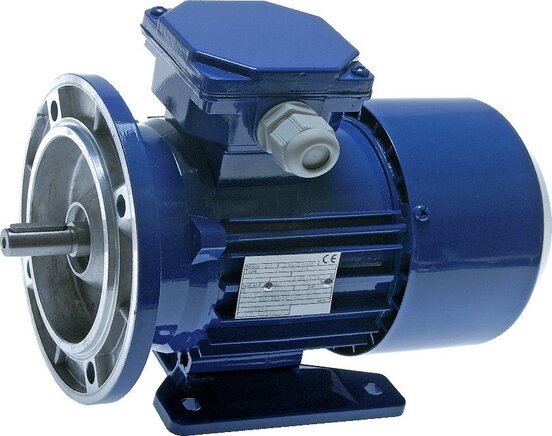

Three-phase motor, Design B5, 3000 n, 2-pin, 2,20 kW
{{ $t('shop.all.artikelnummer') }}:
EMO 3000-2,2-B5
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Housing: Aluminium, surface cooled, protection class: IP 55, insulation material class: F, operating type: S1 (continuous operation), clamping box position: top
Temperature range:
-15 to +40 °C
Housing: Aluminium, surface cooled, protection class: IP 55, insulation material class: F, operating type: S1 (continuous operation), clamping box position: top
Temperature range:
-15 to +40 °C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | Design B5 |
| Version | 3000 n, 2-pin |
| Size | 90 B |
| Voltage** (Triangle / Star) [V] | 400 / 690 |
| Nominal speed [1/min] | 2.855 |
| Power output [kW] | 2,20 |

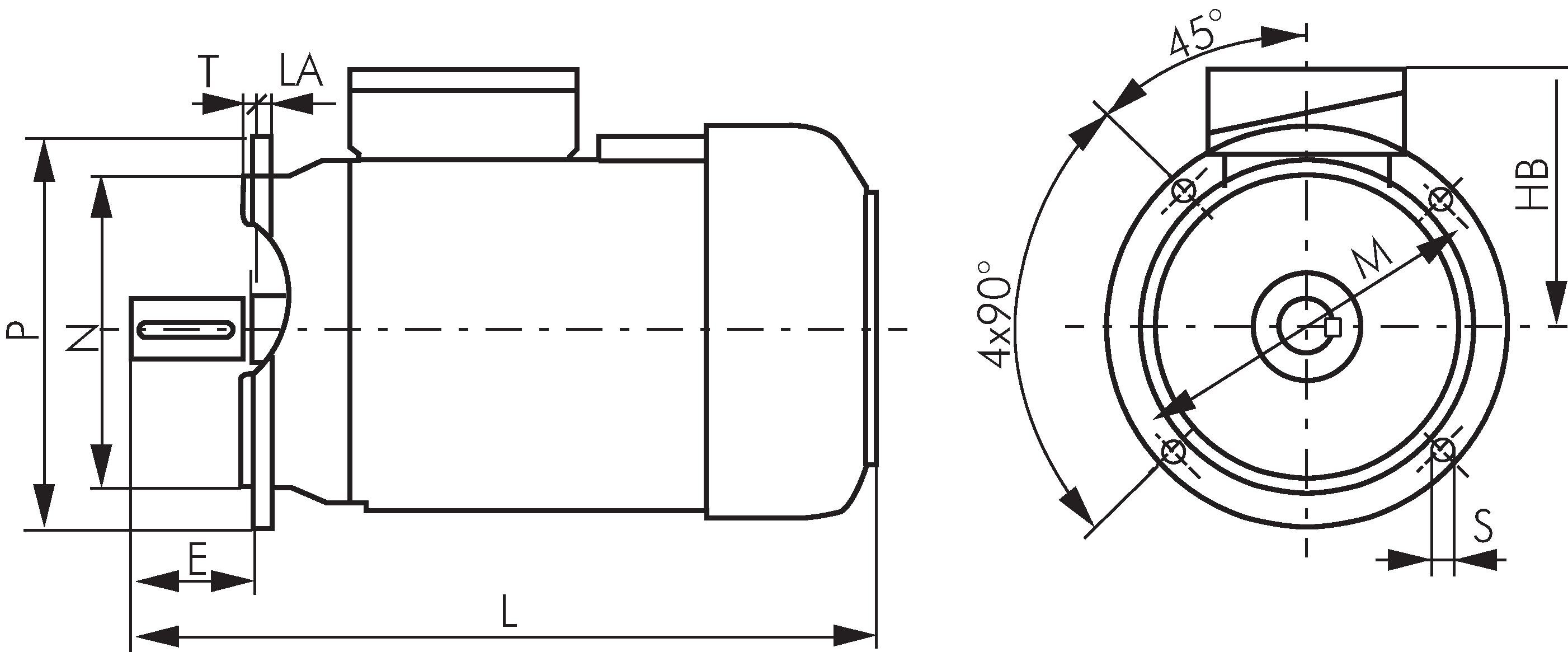

| A [mm] | 140 |
| AA [mm] | 50 |
| AB [mm] | 170 |
| B [mm] | 125 |
| BB [mm] | 153 |
| C [mm] | 56 |
| D [mm] | 24j6 |
| E [mm] | 50 |
| F [mm] | 8h9 |
| GA [mm] | 27,0 |
| H [mm] | 90 |
| HA [mm] | 10 |
| HB [mm] | 130 |
| HD [mm] | 220 |
| K [mm] | 10 |
| L [mm] | 330 |
| LA [mm] | 8 |
| M [mm] | 165 |
| N [mm] | 130j6 |
| P [mm] | 200 |
| S [mm] | 12 |
| T [mm] | 3,5 |
{{ $t('shop.all.hinweis') }}
{{ $t('shop.display.artikel.nicht_per_paketdienst') }}
{{ $t('shop.display.artikel.info') }} EMO3000-2,2-B5
| {{ $t('shop.all.gewicht') }} | 21 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571283506 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85015220 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 825) atlas9_seiten/825.pdf
3D CAD file (volume model) protected/cad/3d/70168/emo3000-22-b5260093.stp
3D CAD file (volume model) protected/cad/3d/70168/emo3000-22-b5260093.stp
