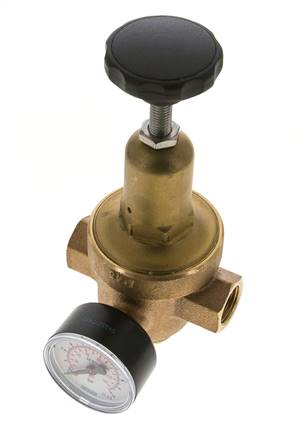

Standard pressure reducer G 1/2" 1,5 to 8 bar
{{ $t('shop.all.artikelnummer') }}:
DRV 200-12
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Diaphragm pressure reducer, not resettable (without relieving system)
Materials:
Body: gunmetal, spring cover: pressed brass (>G 1": grey cast iron), diaphragm and seals: NBR / CR
Temperature range:
-15 to +100 °C (with pressure gauge max. +60 °C)
Pressure gauge connection:
G 1/4"
Media:
Compressed air, nitrogen, neutral non-inflammable gases, water and neutral, non-bonding liquids, no steam!
Scope of delivery:
Pressure reducer including 50 mm pressure gauge
Diaphragm pressure reducer, not resettable (without relieving system)
Materials:
Body: gunmetal, spring cover: pressed brass (>G 1": grey cast iron), diaphragm and seals: NBR / CR
Temperature range:
-15 to +100 °C (with pressure gauge max. +60 °C)
Pressure gauge connection:
G 1/4"
Media:
Compressed air, nitrogen, neutral non-inflammable gases, water and neutral, non-bonding liquids, no steam!
Scope of delivery:
Pressure reducer including 50 mm pressure gauge
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard pressure reducer |
| Thread | G 1/2" |
| Pressure regulation range [bar] | 1,5 - 8 |
| Flow (kv)* [l/min] | 20 |
| input pressure [bar] | max. 25 |
| Max reduction ratio P1/P2 | 10 : 1 |
| Pressure gauge display [bar] | 0 - 10 |
| H1 [mm] | 47 |
| H2 [mm] | 190 |
| L [mm] | 85 |
| Seal sets | DRV 200-12 REP |
{{ $t('shop.display.artikel.info') }} DRV200-12
| {{ $t('shop.all.gewicht') }} | 1,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571273866 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811099 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 616) atlas9_seiten/616.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73090/drv200-12152104.stp
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73090/drv200-12152104.stp
